NEC SEFUSE SF/E Series Thermal Fuse, 10A 250V, 70C-240C

NEC SEFUSE SF/E Series Thermal Fuse, 10A 250V, 70C-240C

SF/E type thermal fuse with a ceramic tube holding the leads in place and AgCuO sliding contacts
AC250V | 15A/10A resistive load | functioning temperatures from 70C to 240C
Meets UL, VDE, CCC, PSE and RoHS; used in rice cookers, kettles, hair dryers and air conditioners

滿千免運優惠(限郵寄和超商純取貨) on order

本賣場無實體店面，無提供自取服務，敬請見諒。 on order

{{ productService.variationPriceMemberTag(variationSelected) }}
{{ 'product.member_only' | translate }}
{{shoplineProductReview.avg_score}}( {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}} )
{{amazonProductReview.avg_rating}}( ({{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}) )
{{ title.name_translations | translateModel }} : {{variationName[$index] | translateModel}}
Quantity
The maximum quantity per submit is 99999
This quantity is invalid, please enter a valid quantity.
Sold Out

Not enough stock.
Your item was not added to your cart.

Not enough stock.
Please adjust your quantity.

{{'products.quick_cart.out_of_number_hint'| translate}}

{{'product.preorder_limit.hint'| translate}}

Limit {{ product.max_order_quantity }} per order.

Only {{ quantityOfStock }} item(s) left.

Please message the shop owner for order details.
Description
Shipping & Payment
Description

商品簡介

●SF/E型具有陶瓷管，可減輕引線彎曲時密封樹脂上可能產生的應力，從而可靠地將引線固定到位。 此外，滑動接點採用銀銅氧化物（AgCuO）材料製成，該材料已獲得全球專利。
●符合UL、VDE、CCC、PSE等多項國際安全標準。
●環保，不含有害物質（符合WEEE和RoHS）

SF型金屬外殼內裝有熱敏顆粒，可回應異常溫度狀況並觸發切斷功能。 SF型具有6A至15A（AC）的大額定電流。


應用領域：
●小家電，如咖啡機、電熱水壺、電鍋、麵包機、電爐、熨斗、吹風機
●空調、冰箱、洗衣機、暖氣機、瓦斯鍋爐等大型家電
●影印機、雷射印表機、傳真機及電源插座等辦公設備
●電池組、充電器等電池設備
●變壓器、轉接器、逆變器、水泥電阻等各種電源
●汽車應用，如汽車空調、電磁閥和電機



商品規格

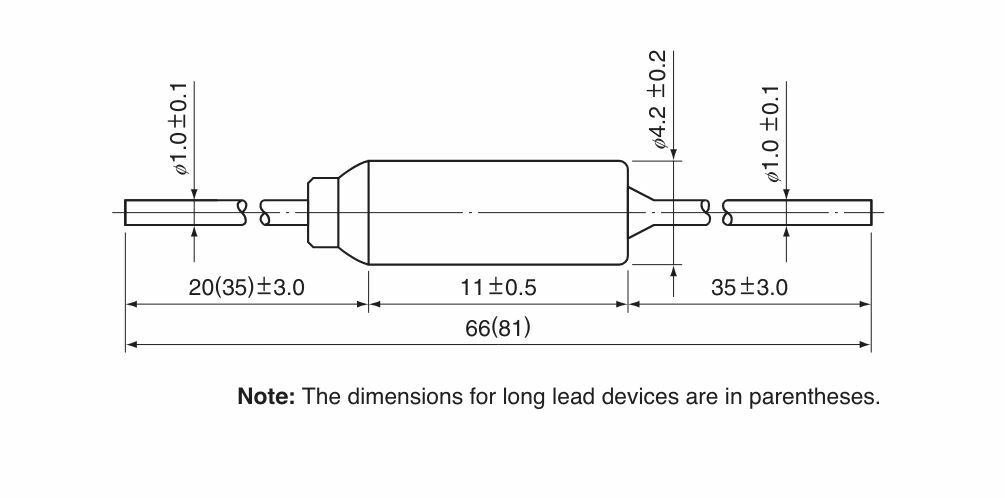

SF/E,溫度保險絲,尺寸規格

Part Number Rated Functioning Temperature Tf(℃) Operating Temperature(℃) Holding TemperatureTh (℃) Maximum Temperature Limit Tm (℃) Rated Current Rated Voltage
SF  70E 73 70±2 58 150 15A/10A (Resistive) AC250V
SF  91E 94 91±3/1 79 150
SF  96E 99 96±2 84 150
SF113E 113 110±2 98 160
SF119E 121 119±2 106 150
SF129E 133 129±2 118 159
SF139E 142 139±2 127 159
SF152E 157 152±2 142 172
SF169E 172 169±1/3 157 189
SF184E 184 182±2 174 210
SF188E 192 188±3/1 177 375
SF214E 216 214±1/3 200 375
SF240E 240 237±2 200 375



文件下載

Datasheet

規格 產品貨號 區號 品牌 原廠貨號
70℃ 3680111000716 Lb10-02 NEC SF70E
94℃ 3680111000730 Lb09-13 SF91E
99℃ 3680111000747 Lb09-12 SF96E
113℃ 3680111000754 Lb09-11 SF113E
121℃ 3680111000761 Lb09-10 SF119E
133℃ 3680111000778 Lb09-09 SF129E
142℃ 3680111000785 Lb09-08 SF139E
157℃ 3680111000792 Lb09-07 SF152E
172℃ 3680111000808 Lb09-06 SF169E
184℃ 3680111000815 Lb09-05 SF184E
216℃ 3680111000839 Lb09-03 SF214E
240℃【隨機出貨】 3680111000853 Lb09-01 NEC SF240E (2102-240)
AUPO BF240
