Ameba BW20-12F typeC RTL8720DN

產品貨號：368030502303
區號：Qe25-09
品牌：Ameba
原廠貨號：

滿千免運優惠(限郵寄和超商純取貨) on order

本賣場無實體店面，無提供自取服務，敬請見諒。 on order

NT$270

{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}

{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}

The maximum quantity per submit is 99999

This quantity is invalid, please enter a valid quantity.

Sold Out

Please message the shop owner for order details.

Description

Shipping & Payment

Description

商品簡介

商品規格

Model	BW20-12F-Kit
Use for module	BW20-12F
Package	DIP-28

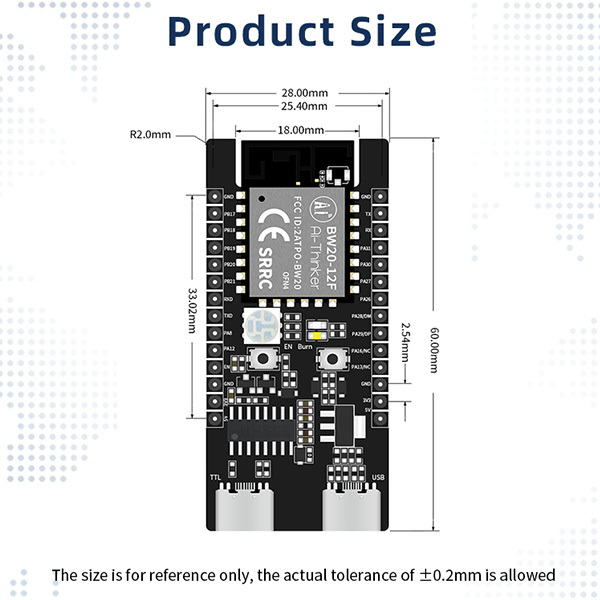

Size	28604.2(±0.2)mm
Antenna type	On-board PCB antenna
Frequency range	2400~2483.5MHz or 5180~5825MHz
Working temperature	-40°C~85°C
Storage enviroment	-40°C~85°C,＜90%RH
Power supply range	Support voltage 3.0V~3.6V, typical value 3.3V. support current＞500mA

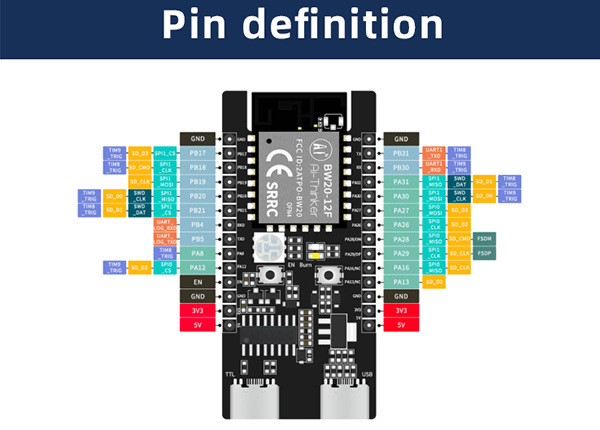

Support interface	UART/GPIO/ADC/PWM/IIC/SPI/SDIO/IR/SWD/USB
Number of IO ports available	Default 17
Serial port rate	Default 115200bps
Bluetooth	BLE 5.0
SPI Flash	Default 4MByte, Maximum support is 16MByte

Wi-Fi RF performance

Description	Typical			Unit
Frequency range	2400~2483.5 and 5180~5825			MHz
Output power
Mode	Min.	Typ.	Max	Unit
11a mode, the PA output power	-	18	-	dBm
11b mode, the PA output power	-	19	-	dBm
11g mode, the PA output power	-	18	-	dBm
11n mode, the PA output power	-	17	-	dBm
Receiving sensitivity
Mode	Min.	Typ.	Max	Unit
11b, 1Mbps	-	-99	-	dBm
11b, 11Mbps	-	-90	-	dBm
11a/g, 6Mbps	-	-94	-	dBm
11a/g, 54Mbps	-	-76	-	dBm
HT20(MCS0)	-	-93	-	dBm
HT20(MCS7)	-	-74	-	dBm
HT40(MCS0)	-	-91	-	dBm
HT40(MCS7)	-	-71	-	dBm

BLE RF performance

Description	Typical			Unit
Frequency range	2400~2484MHz			MHz
Output power
Mode	Min.	Typ.	Max	Unit
1Mbps	-	15	-	dBm
2Mbps	-	15	-	dBm
Receiving sensitivity
Mode	Min.	Typ.	Max	Unit
1Mbps@30.8%PER	-	-99	-	dBm
2Mbps@30.8%PER	-	-97	-	dBm

介面

Indicator light or button	LED status or key press function	Remarks

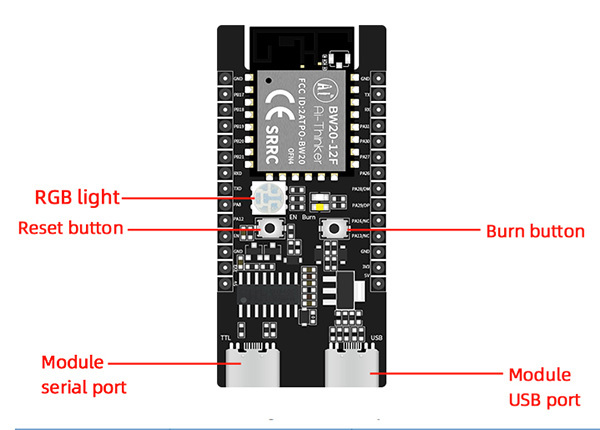

RGB lights	RGB light respectively connects to PB18、PB19、PB17	RGB lamp three IO pins correspond to three primary colors of red, blue and green
Reset button	Connect EN pin	Release the reset after pressing
Burn key	Connect LOG_TX pin	First press and hold the burn button, then press the reset button to release, and then release the burn button, yhat is, enter the burn mode

文件下載

Datasheet

出貨清單

Ameba BW20-12F typeC RTL8720DN 開發板 x 1
