SparkFun QRE1113 Infrared Reflectance Sensor Module, Analog/Digital Output

SparkFun QRE1113 Infrared Reflectance Sensor Module, Analog/Digital Output

QRE1113 infrared reflectance sensor module that tells white from black surfaces for line following
5VDC | 25mA | optimal sensing distance 3mm | 7.62 x 13.97mm | 3-pin 0.1 inch header
Versions: analog (voltage varies with reflected light) / digital (capacitor discharge, no ADC needed)

滿千免運優惠(限郵寄和超商純取貨) on order

本賣場無實體店面，無提供自取服務，敬請見諒。 on order

{{ productService.variationPriceMemberTag(variationSelected) }}
{{ 'product.member_only' | translate }}
{{shoplineProductReview.avg_score}}( {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}} )
{{amazonProductReview.avg_rating}}( ({{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}) )
{{ title.name_translations | translateModel }} : {{variationName[$index] | translateModel}}
Quantity
The maximum quantity per submit is 99999
This quantity is invalid, please enter a valid quantity.
Sold Out

Not enough stock.
Your item was not added to your cart.

Not enough stock.
Please adjust your quantity.

{{'products.quick_cart.out_of_number_hint'| translate}}

{{'product.preorder_limit.hint'| translate}}

Limit {{ product.max_order_quantity }} per order.

Only {{ quantityOfStock }} item(s) left.

Please message the shop owner for order details.
Description
Shipping & Payment
Description

Description

This version of the QRE1113 breakout board features a digital output, using a capacitor discharge circuit to measure the amount of reflection. This tiny board is perfect for line sensing when only digital I/O is available, and can be used in both 3.3V and 5V systems.

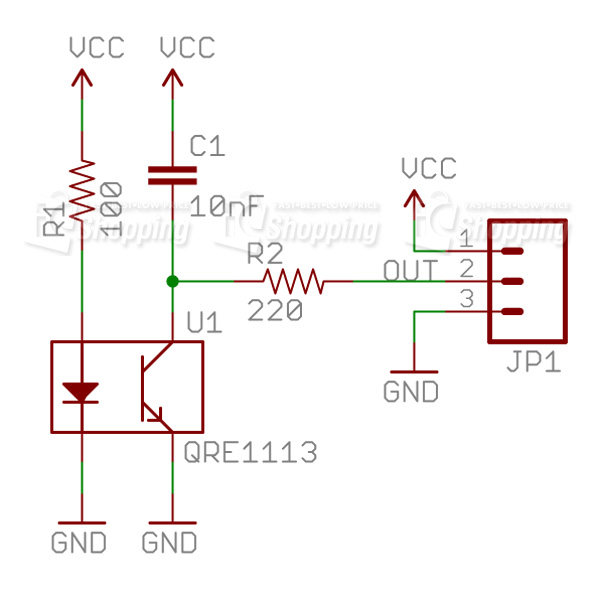

The board's QRE1113 IR reflectance sensor is comprised of two parts - an IR emitting LED and an IR sensitive phototransistor. When you apply power to the VCC and GND pins the IR LED inside the sensor will illuminate. A 100Ω resistor is on-board and placed in series with the LED to limit current. The output of the phototransistor is tied to a 10nF capacitor. The faster that capacitor discharges, the more reflective the surface is.
These sensors are widely used in line following robots. White surfaces reflect more light than black, so, when directed towards a white surface, the capacitor will discharge faster than it would when pointed towards a black surface.

The power input and output pins are brought out to a 3-pin, 0.1" pitch header. The board also has a single mounting hole if you want to screw it onto something.


Features:

  • 5VDC operating voltage
  • 25mA supply current
  • Digital I/O compatible
  • No ADC required
  • Optimal sensing distance:0.125" (3mm)



Specification

Dimensions：0.3x0.55"
