Seeed Studio Grove - 3-Axis Digital Accelerometer ADXL372, +/-200g

Seeed Studio Grove - 3-Axis Digital Accelerometer ADXL372, +/-200g

ADXL372 ultra low power high-range MEMS accelerometer for shock and impact detection
+/-200g | 12-bit (100mg/LSB) | Grove I2C | 22uA in measurement mode | ODR 400-6400Hz
Deep FIFO buffer built in

滿千免運優惠(限郵寄和超商純取貨) on order

本賣場無實體店面，無提供自取服務，敬請見諒。 on order

NT$1,650
{{shoplineProductReview.avg_score}}( {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}} )
{{amazonProductReview.avg_rating}}( ({{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}) )
Made to order. Please contact us for the lead time before ordering.
Quantity Product set quantity
The maximum quantity per submit is 99999
This quantity is invalid, please enter a valid quantity.
Sold Out

Not enough stock.
Your item was not added to your cart.

Not enough stock.
Please adjust your quantity.

{{'products.quick_cart.out_of_number_hint'| translate}}

{{'product.preorder_limit.hint'| translate}}

Limit {{ product.max_order_quantity }} per order.

Only {{ quantityOfStock }} item(s) left.

Please message the shop owner for order details.
Description
Shipping & Payment
Description

Description

You can find a variety of 3-axis accelerometers on our website that can meet different scenarios and needs. This time, we bring you the industrial grade, high stability, high precision, and low power ADI ADXL series three-axis accelerometers.


The Grove - 3-Axis Digital Accelerometer ±200g (ADXL372) is a ultra low power digital output MEMS Accelerometer, it can provide a 12-bit output at 100 mg/LSB scale factor. The most notable feature of this sensor is its ultra-low power consumption(only 22μA in measurement mode) and large measurement range(±200g). All the data output via the Grove I2C port, the I2C address is changeable. In order to meet a wider range of measurement needs, the sampling rate can be selected from 400Hz/800Hz/1600Hz/3200Hz/6400Hz, and the bandwidth can be selected from 200Hz/400Hz/800Hz/1600Hz/3200Hz. In addition to being used as an acceleration measurement, you can also use this module to do impact and shock detection.


Feature：

  • Large measuring range: ±200g
  • Ultralow power consumption: 22 μA at 3200 Hz ODR
  • Selectable oversampling ratio and bandwidth
  • Deep embedded FIFO to minimize host processor load
  • Build-in 12-bit analog-to-digital converter (ADC)

Applications：

  • Portable Internet of Things (IoT) edge nodes
  • Concussion and head trauma detection
  • Impact and shock detection
  • Asset health assessment



Specification

Grove,3軸數位加速度計,±200g,,ADXL372,尺寸規格



Comparison

Product Measurable Range Interface Operating Voltage Working Temperature
LIS3DHTR ±2g / ±4g / ±8g / ±16g I2C / SPI / ADC 3.3/5V -40°C to +85°C
MMA7660FC ±1.5g I2C
ADXL345 ±16g I2C
BMA400 ±2g / ±4g / ±8g / ±16g I2C
ADXL372 ±200g @each axis I2C



Pin Out

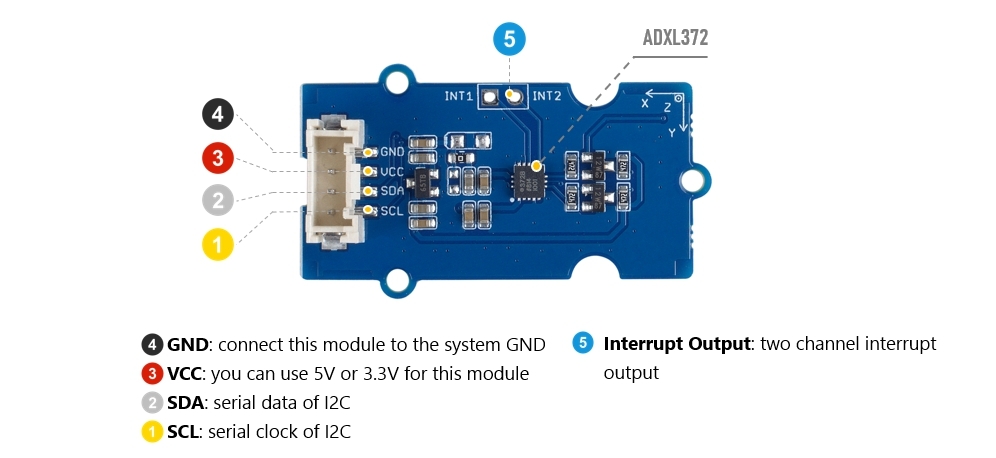

Grove,3軸數位加速度計,±200g,,ADXL372,pinout,正面,EN

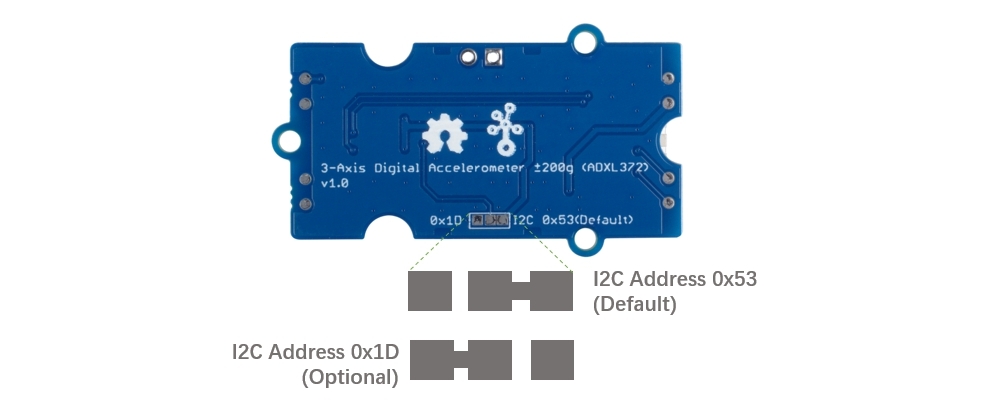

Grove,3軸數位加速度計,±200g,,ADXL372,pinout,背面,EN



Documents

ADXL372 Datasheet



List

  • Grove - 3-Axis Digital Accelerometer ±200g (ADXL372) x 1
