Seeed Studio Grove - 3-Axis Digital Accelerometer BMA400, +/-16g, Ultra Low Power

Seeed Studio Grove - 3-Axis Digital Accelerometer BMA400, +/-16g, Ultra Low Power

BMA400 ultra low power three-axis digital accelerometer that recognises walking, running and standing still
3.3V/5V | +/-2g, +/-4g, +/-8g, +/-16g | 12-bit | I2C | 14uA at 3.3V | 40 x 20 x 7mm
Built-in FIFO, step counter and single or double tap detection; Grove cable included

滿千免運優惠(限郵寄和超商純取貨) on order

本賣場無實體店面，無提供自取服務，敬請見諒。 on order

NT$350
{{shoplineProductReview.avg_score}}( {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}} )
{{amazonProductReview.avg_rating}}( ({{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}) )
Made to order. Please contact us for the lead time before ordering.
Quantity Product set quantity
The maximum quantity per submit is 99999
This quantity is invalid, please enter a valid quantity.
Sold Out

Not enough stock.
Your item was not added to your cart.

Not enough stock.
Please adjust your quantity.

{{'products.quick_cart.out_of_number_hint'| translate}}

{{'product.preorder_limit.hint'| translate}}

Limit {{ product.max_order_quantity }} per order.

Only {{ quantityOfStock }} item(s) left.

Please message the shop owner for order details.
Description
Shipping & Payment
Description

Description

The Grove - 3-Axis Digital Accelerometer ±16g Ultra-low Power (BMA400) sensor is a 12 bit, digital, triaxial acceleration sensor with smart on-chip motion and position-triggered interrupt features. It can detect your movement posture, such as Walking, Running, Standing still.


Feature：

  • Ultra-low power
  • Programmable functionality
  • On-chip FIFO
  • On-chip interrupt features
  • Auto-low power/Auto wakeup
  • Activity/In-activity
  • Step counter
  • Activity Recognition(Walking,Running,Standing still)
  • Orientation detection
  • Tap/Double tap

Applications：

  • Step Counting with ultra-low current consumption for extensive battery lifetime
  • Fitness applications / Activity Tracking
  • Tap / double tap sensing
  • Drop detection for warranty logging
  • Window/door measurements for climate control and alarm systems



Specification

  • Dimensions：40mm x20mm x7mm
  • Weight：G.W 9.2g
  • Battery：Exclude
  • Operating Voltage：3.3V / 5V
  • Power consumption：18uA @5V / 14uA @3.3V
  • Acceleration Range：±2g, ±4g, ±8g, ±16g
  • Sensitivity：1024LSB/g @±2g / 512LSB/g @±4g / 256LSB/g @±8g / 128LSB/g @±16g

Grove,3軸數位加速度計,BMA400,尺寸規格



Comparison

Product Measurable Range Interface Operating Voltage Working Temperature
LIS3DHTR ±2g / ±4g / ±8g / ±16g I2C / SPI / ADC 3.3/5V -40°C to +85°C
MMA7660FC ±1.5g I2C
ADXL345 ±16g I2C
BMA400 ±2g / ±4g / ±8g / ±16g I2C
ADXL372 各軸 ±200g I2C



Pin Out

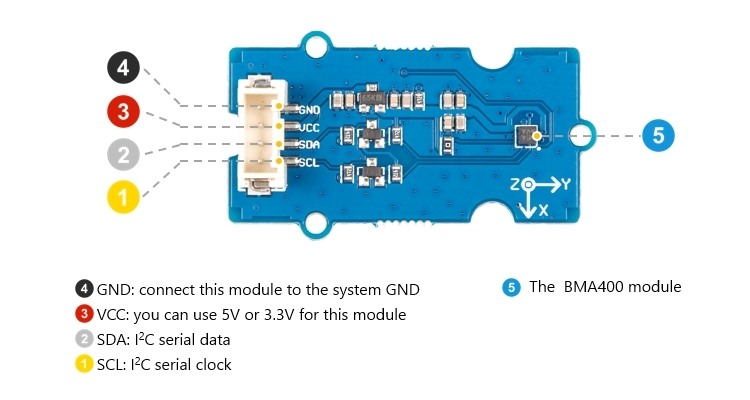

Grove,3軸數位加速度計,BMA400,pinout,正面,EN

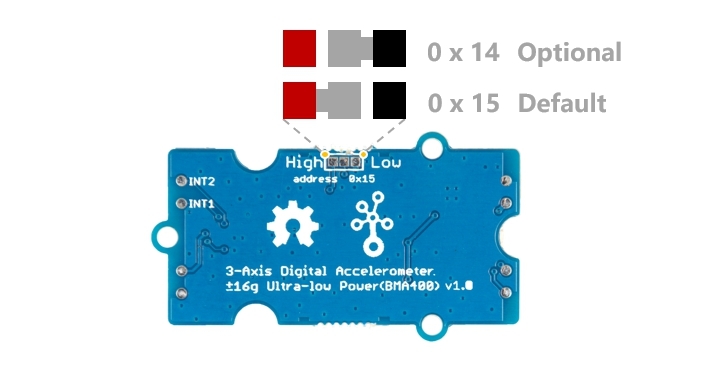

Grove,3軸數位加速度計,BMA400,pinout,背面,EN



Documents



List

  • Grove - 3-Axis Digital Accelerometer ±16g Ultra-low Power (BMA400) x 1
  • Grove Cable x 1
