Waveshare Raspberry Pi CM5 Dual Ethernet Expansion Board 2.5G and Gigabit with M.2 4G/5G

滿千免運優惠(限郵寄和超商純取貨) on order

本賣場無實體店面，無提供自取服務，敬請見諒。 on order

NT$2,750

{{shoplineProductReview.avg_score}}( {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}} )

{{amazonProductReview.avg_rating}}( ({{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}) )

Made to order. Please contact us for the lead time before ordering.

The maximum quantity per submit is 99999

This quantity is invalid, please enter a valid quantity.

Sold Out

Please message the shop owner for order details.

Description

Shipping & Payment

Description

Specifications

CM5 socket	Suitable for all variants of Compute Module 5
Networking	1000M Ethernet RJ45 port × 1 2500M Ethernet RJ45 port × 1
Connector	Raspberry Pi 40PIN GPIO header
USB	USB 3.2 Gen1 × 2
MIPI	4-lane MIPI interface × 2 (22PIN 0.5mm FFC connector)
Video	HDMI port × 2, supports dual 4K display outputs
M.2	M.2 M KEY (PCIe Gen2/3 x 1)
M.2 (4G / 5G)	M.2 M KEY, supports connecting 4G / 5G communication module
Storage	TF card socket for Compute Module 5 Lite (without eMMC) variants
Fan Header	5V, 4PIN JST-SH PWM fan connector
Power Input	7V~36V wide voltage range DC jack, 5V 5A Type-C port

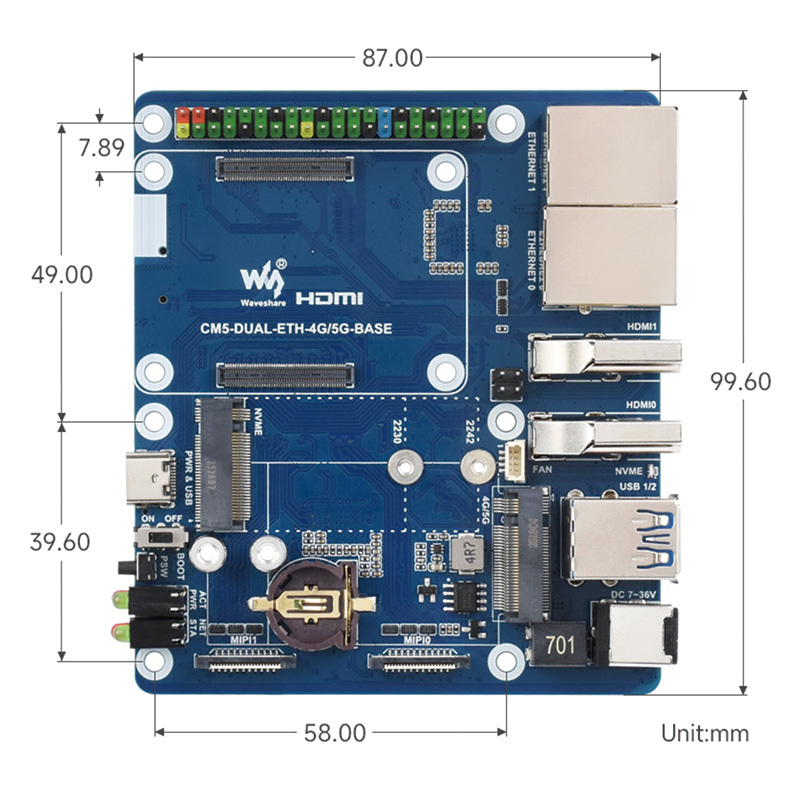

Dimensions	the base board: 99.60 × 87.00 (mm) the case: 104.80 × 90.00 × 29.70 (mm)

Connecting with Compute Module 5

standard CM5 socket and color-coded Raspberry Pi 40PIN GPIO header
suitable for Compute Module 5 Lite / eMMC series module

* for reference only, please refer to the package content for detailed part list

4G / 5G module compatibility

compatible with communication modules with M.2 B KEY interface

Dual Ethernet Base Board For Raspberry Pi CM5, Suitable for 4G/5G communication modules

* An additional communication module is required to enable 5G/4G/3G/2G cellular network function, recommended: SIM7600G-H-M.2, SIM8200EA-M2, and SIM8262E-M2.

Supports connecting to M.2 NVMe Drive

Faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive
