18650 / 26650 SMD Battery Holder, Single or Dual Cell

Surface-mount battery holder that solders straight onto a PCB for 18650 and 26650 cylindrical cells.
18650 single or dual cell | 26650 single or dual cell | SMT mounting
Cells stay easy to swap, suiting IoT devices, wireless sensor nodes and dev board projects

滿千免運優惠(限郵寄和超商純取貨) on order

本賣場無實體店面，無提供自取服務，敬請見諒。 on order

{{shoplineProductReview.avg_score}}( {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}} )

{{amazonProductReview.avg_rating}}( ({{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}) )

{{ title.name_translations | translateModel }} : {{variationName[$index] | translateModel}}

Quantity

The maximum quantity per submit is 99999

This quantity is invalid, please enter a valid quantity.

Sold Out

Please message the shop owner for order details.

Description

Shipping & Payment

Description

商品簡介

貼片式鋰電池座（適用 18650 / 26650 圓柱型電池）採用表面黏著（SMT）安裝方式，可直接焊接於電路板上，省去傳統接線與外接電池盒的繁瑣配置，有效提升整體模組的整合度與組裝效率。其具備穩定的固定結構與導電接點設計，以確保供電穩定性，同時方便拆裝與更換電池，適合需要可維護電源設計的應用，如各類嵌入式系統與電子設備開發，包括 IoT 裝置、無線感測節點、攜帶式儀器、低功耗控制模組、開發板專案等，特別適合空間有限且需高度整合的產品設計，有助於縮小整體電路體積並提升產品一致性。

商品規格

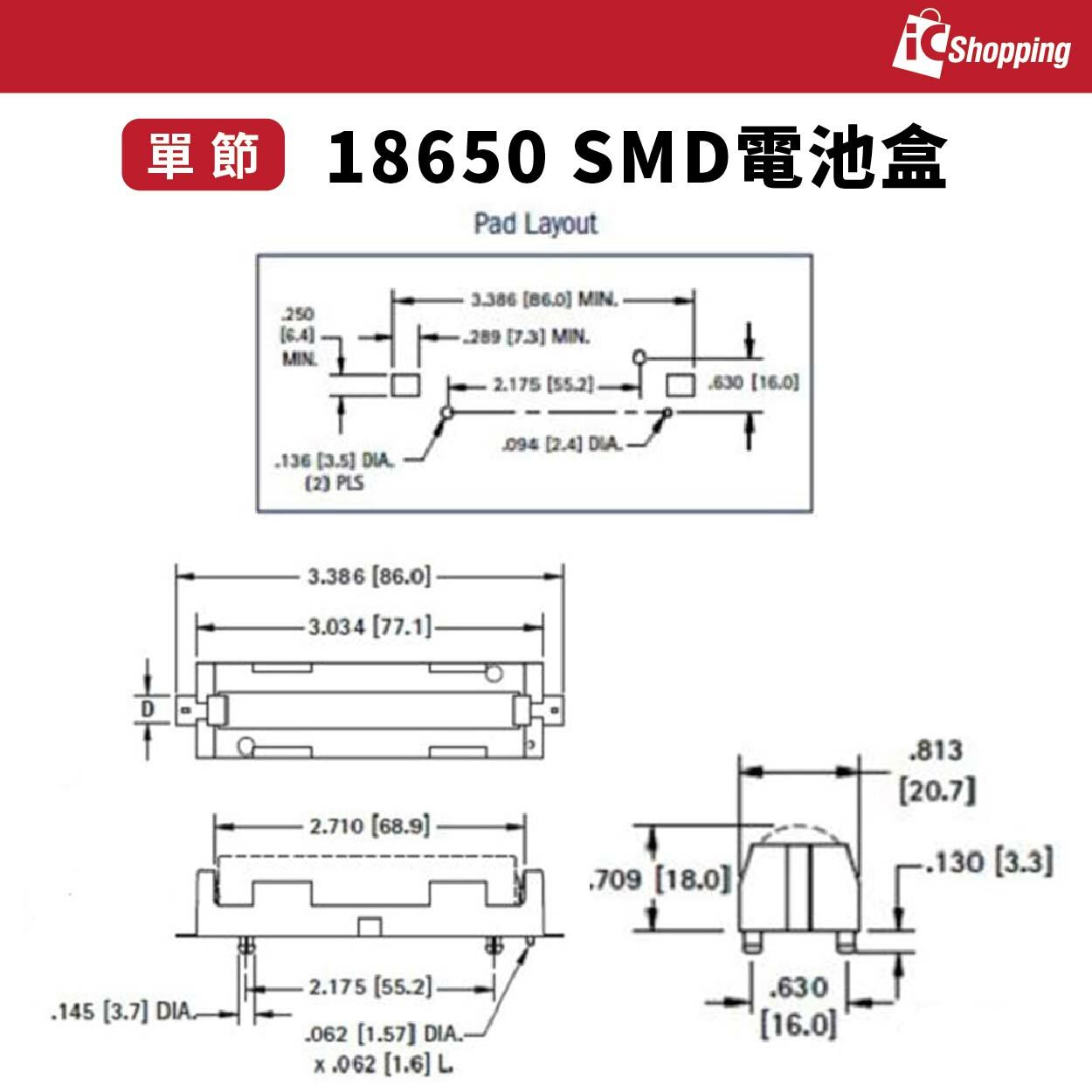

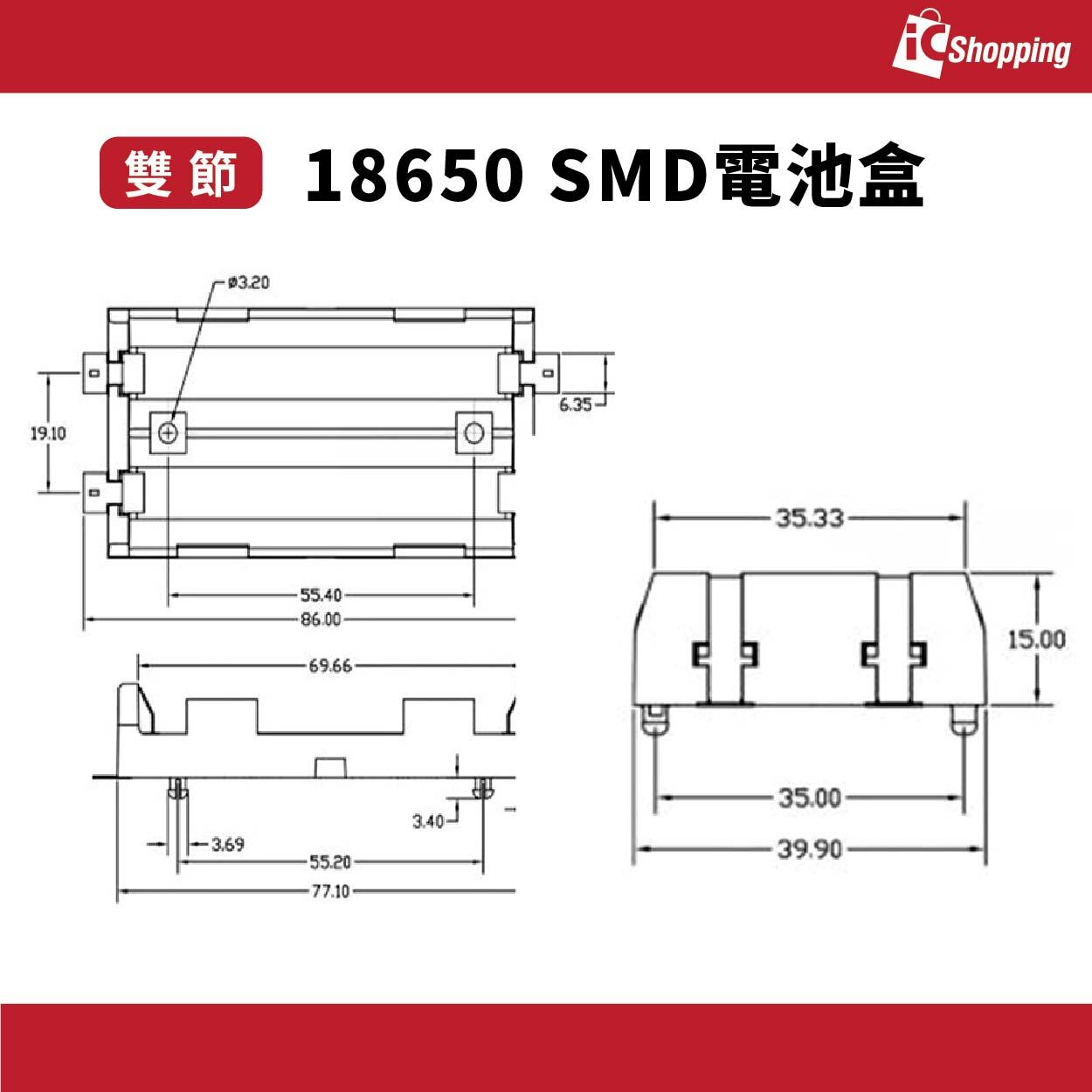

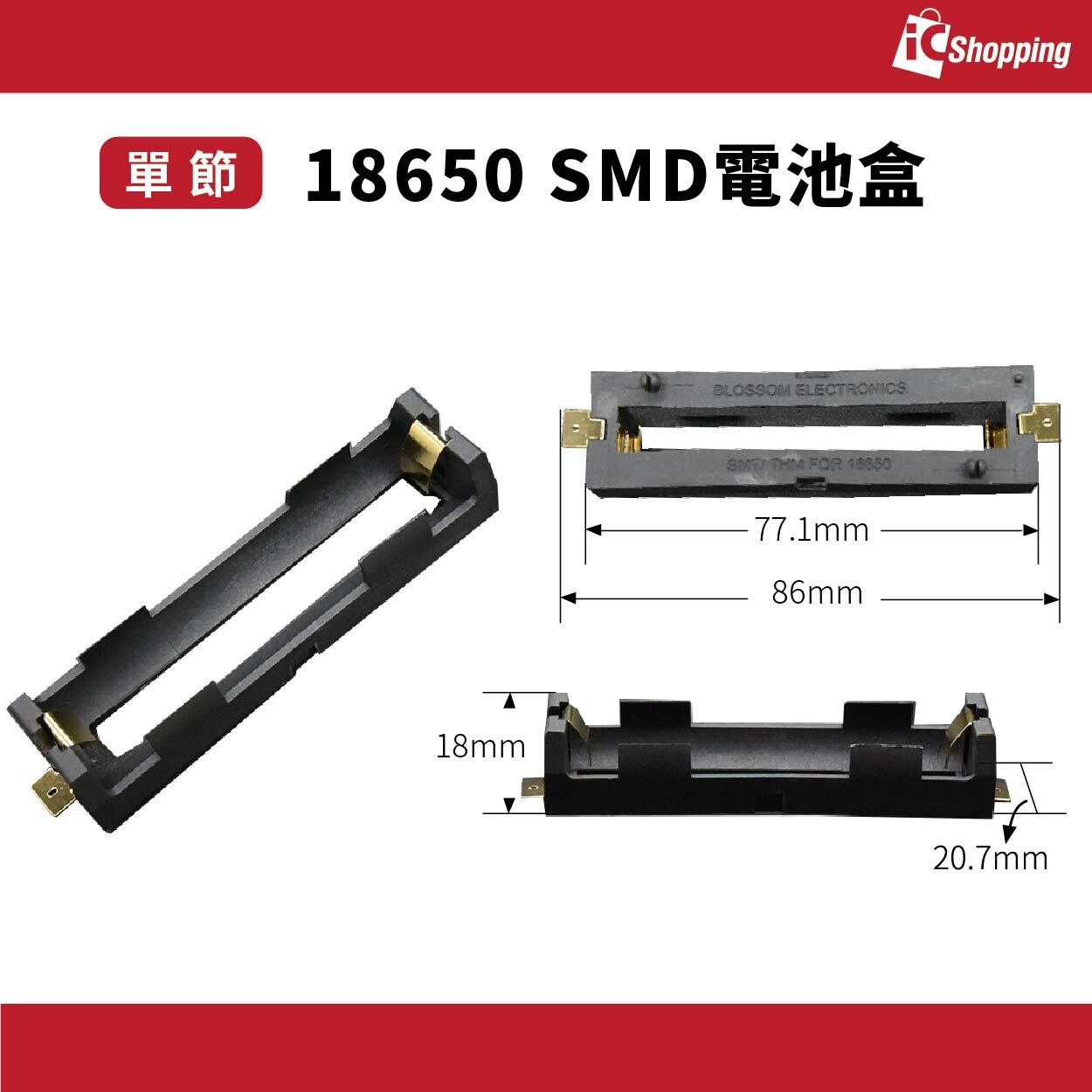

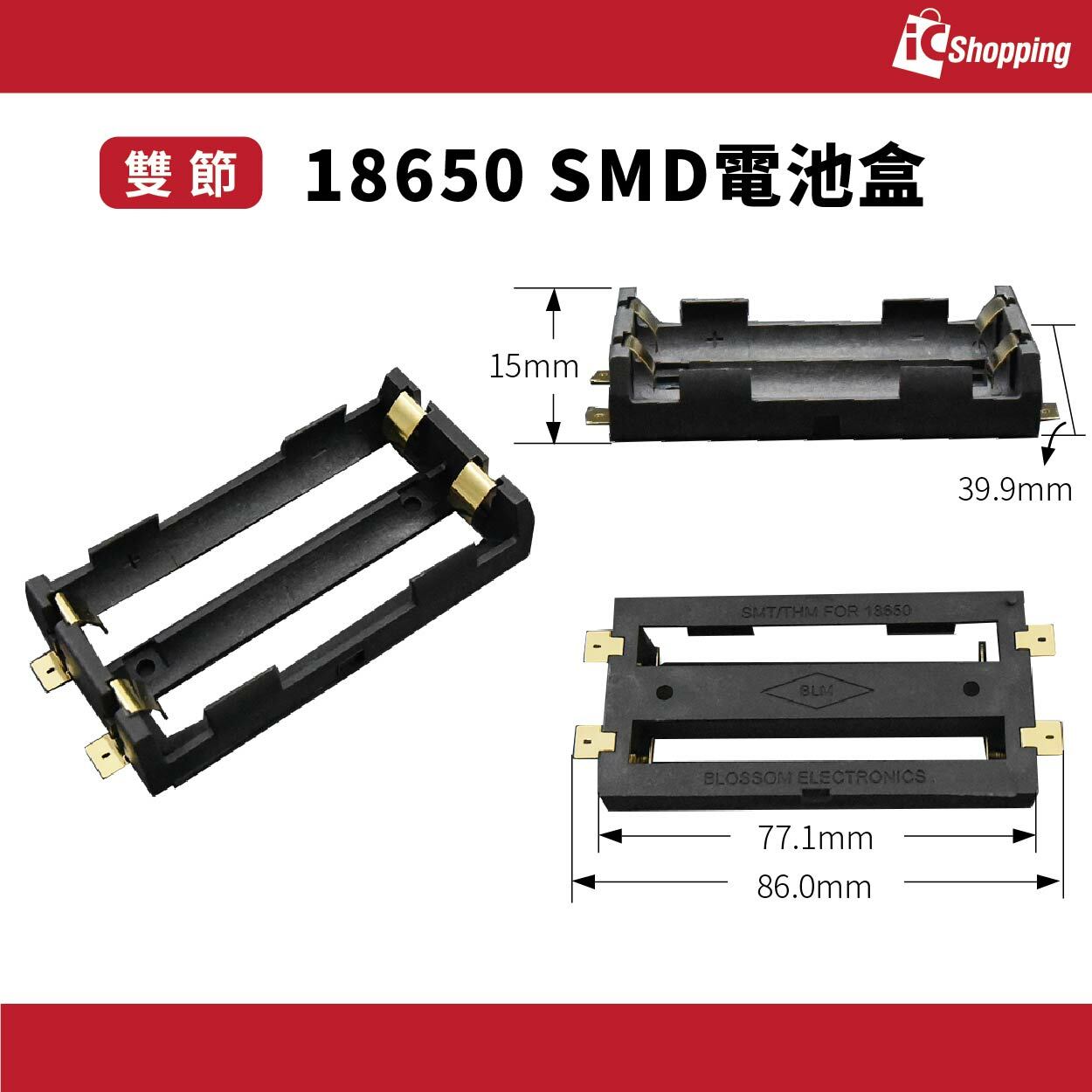

18650 SMD 貼片式電池盒,一節,單節,尺寸規格 18650 SMD 貼片式電池盒,兩節,雙節,尺寸規格

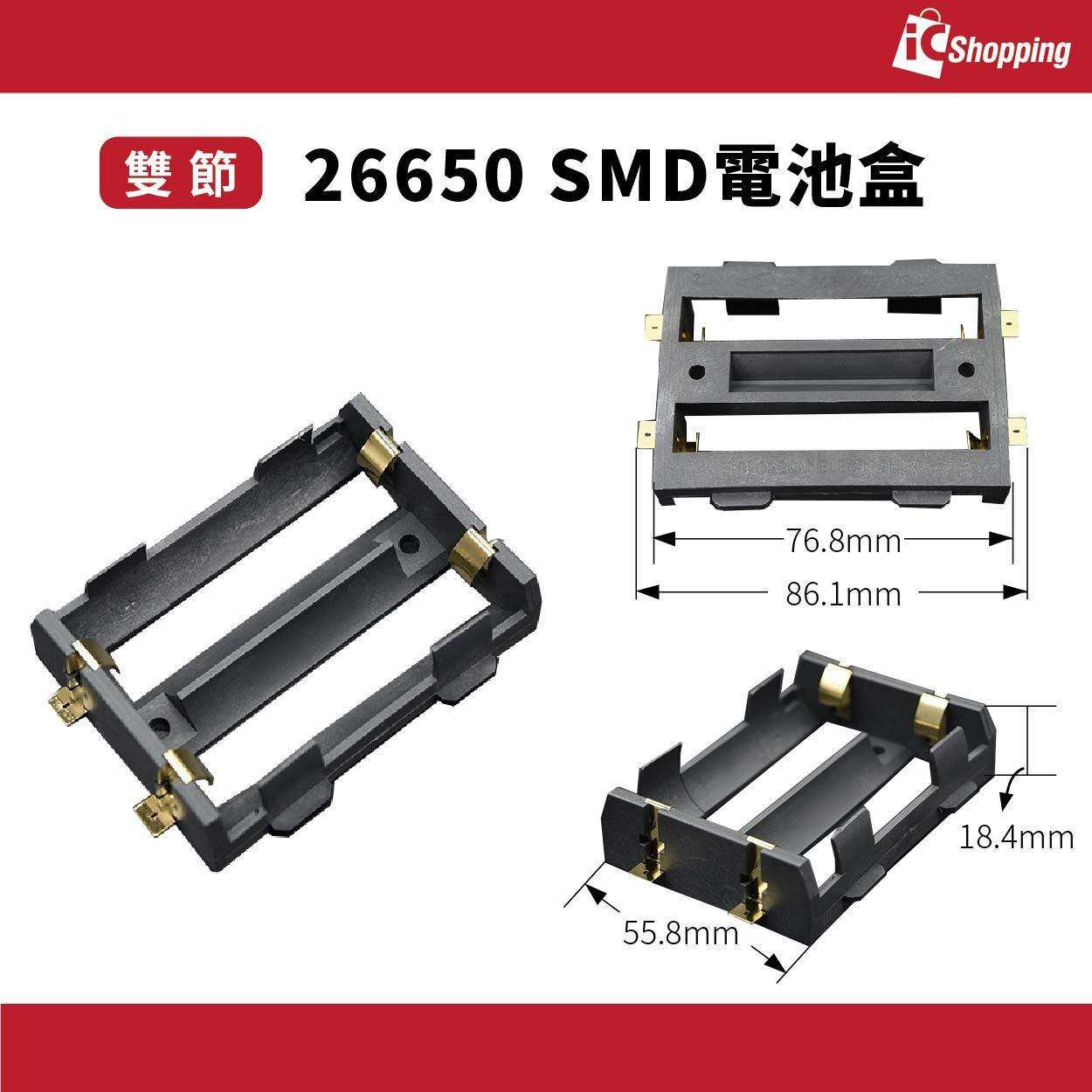

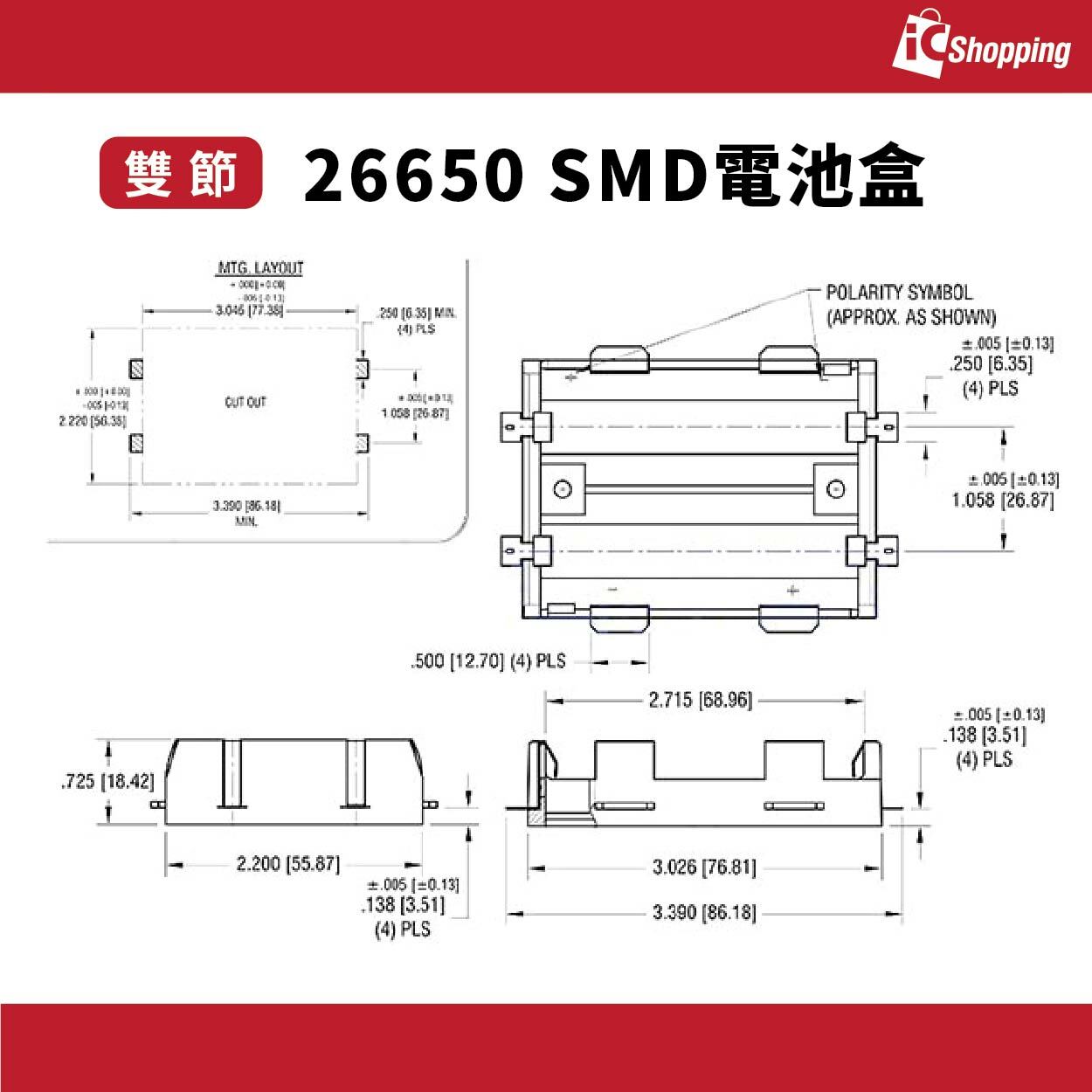

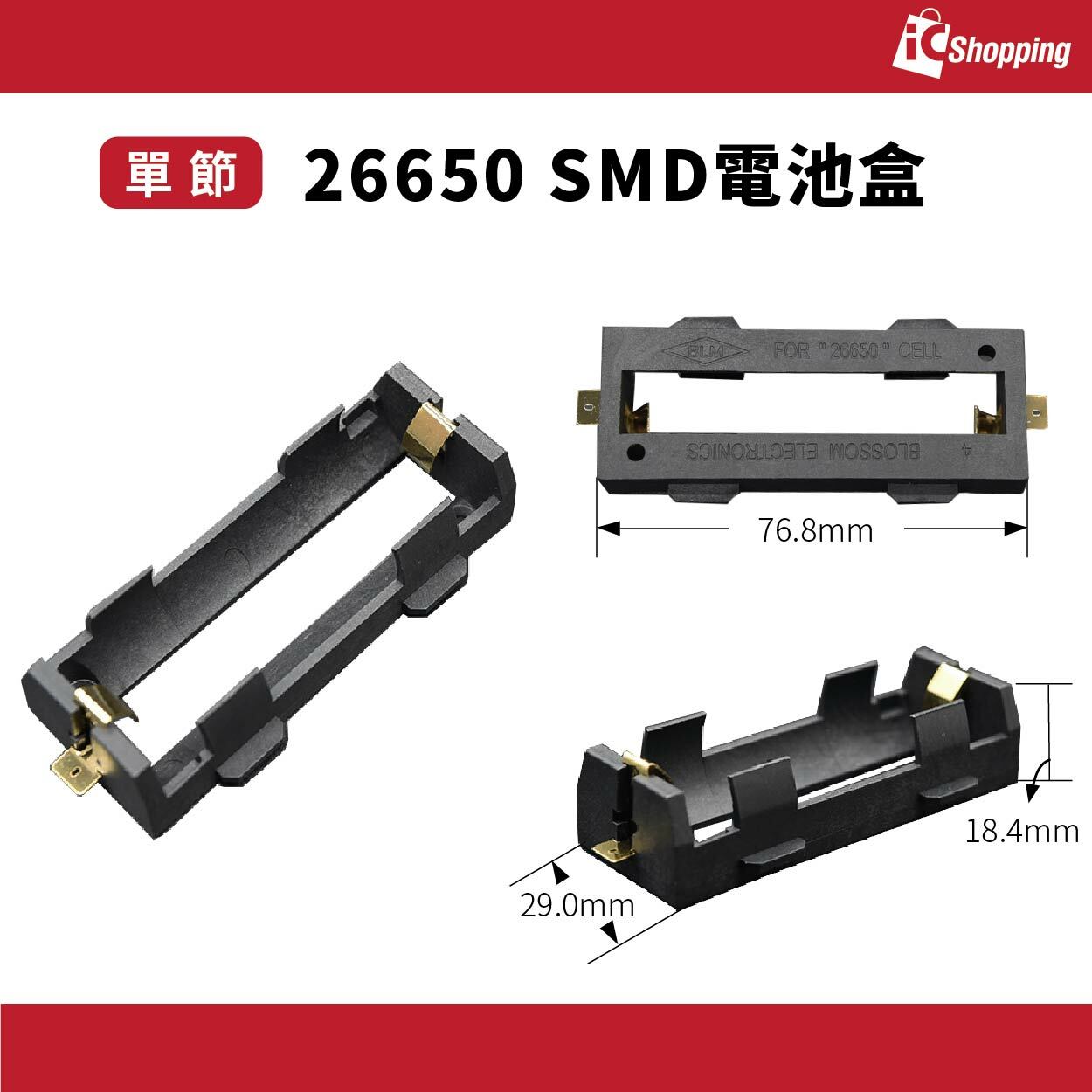

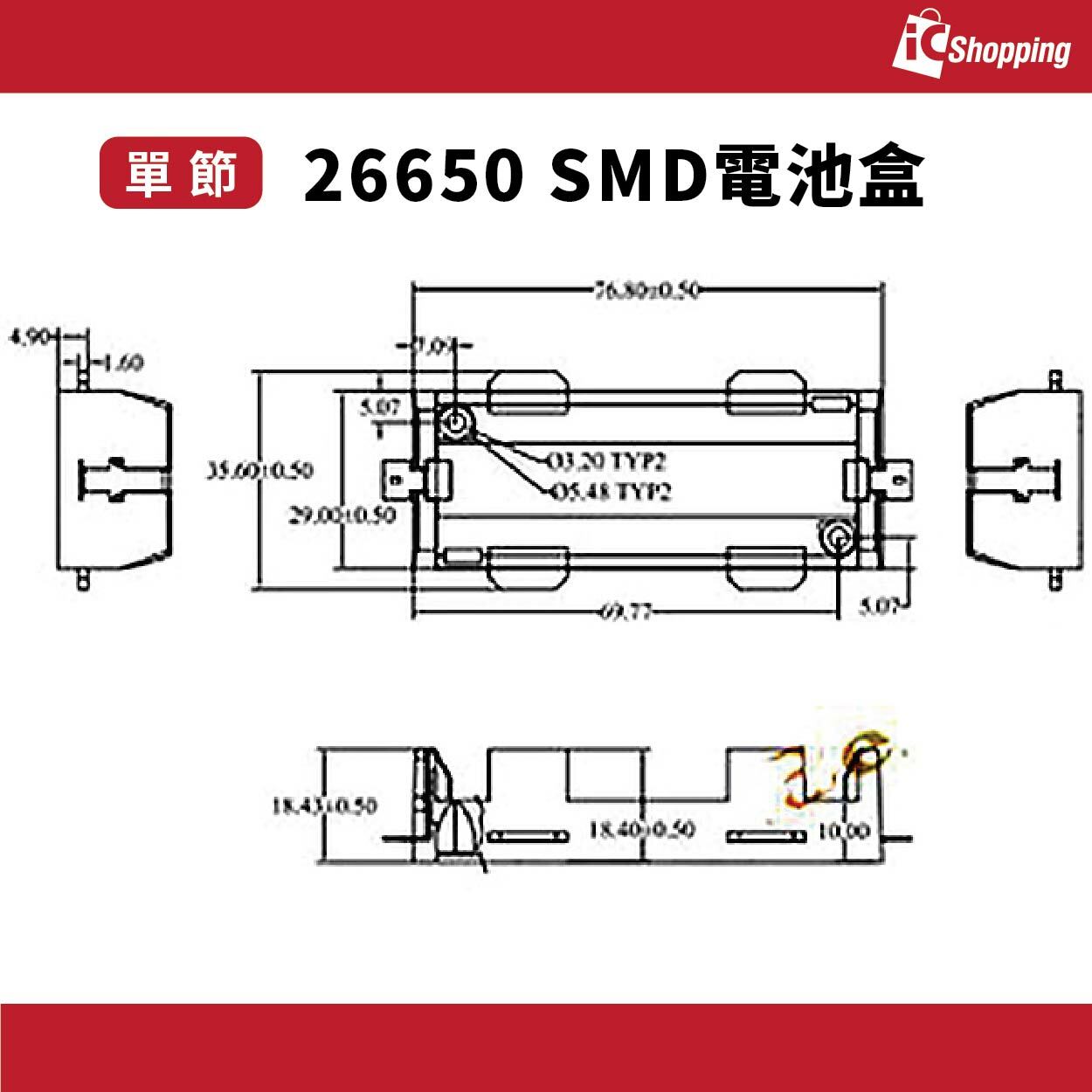

26650 SMD 貼片式電池盒,一節,單節,尺寸規格 26650 SMD 貼片式電池盒,兩節,雙節,尺寸規格

規格	尺寸	產品貨號	區號
18650	單節	368090500174	Me01-02-C01
18650	雙節	368090500175	Pc03-02-A01
26650	單節	368090500180	Mf02-04-B03
26650	雙節	368090500178	Mf02-04-B01
