價格均含稅,下單享優惠!歡迎大量採購,由專人提供專案報價。
{{ childProduct.title_translations | translateModel }}
{{ getChildVariationShorthand(childProduct.child_variation) }}
{{ getSelectedItemDetail(selectedChildProduct, item).childProductName }} x {{ selectedChildProduct.quantity || 1 }}
{{ getSelectedItemDetail(selectedChildProduct, item).childVariationName }}
產品貨號:368030800930
區號:
品牌:Seeed studio
原廠貨號:105100021
全店,滿千免運優惠(限郵寄和超商純取貨)
全店,本賣場無實體店面,無提供自取服務,敬請見諒。
商品存貨不足,未能加入購物車
您所填寫的商品數量超過庫存
{{'products.quick_cart.out_of_number_hint'| translate}}
{{'product.preorder_limit.hint'| translate}}
每筆訂單限購 {{ product.max_order_quantity }} 件
現庫存只剩下 {{ quantityOfStock }} 件
廣泛的 LED 相容性
XIAO 智慧控制相容性
適用於所有 Seeed Studio XIAO 開發板。與 XIAO ESP32 系列 (ESP32-C3/S3/C6) 搭配使用時,可透過以下方式解鎖智慧功能:
Grove 生態系統相容性
靈活的電源輸入
緊湊的外形
全面保護
支援的 LED 型號 | 單色 LED |
可尋址 RGB LED(WS2811、WS2812、WS2812B、WS2813、WS2815…) | |
3.3V | |
LED連接器 | |
4pin 3.81mm 螺絲接線端子連接器: | |
12V | |
5V | |
A0 | |
GND | |
電源輸入 | |
電源供應器,12V/2A/24W,歐標or美標插頭,直流輸出 | |
其他 DC 12V 電源轉接器,附 5.5mm x 2.1mm x 10±0.3mm 插頭 | |
直流12V電線 | |
LED電源支援 | DC 12V / DC 5V |
工作電流 | 12V/2A, 5V/3A |

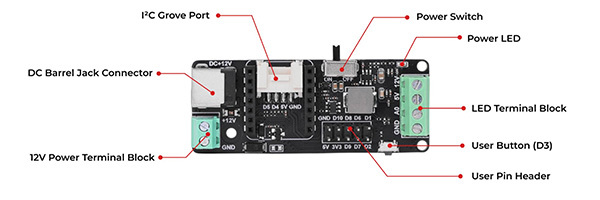

Onboard | 電源開關 x1 |
Grove I²C 介面 x1 | |
使用者按鈕 (D3) x1 | |
電源 LED x1 | |
使用者引腳接頭 | SPI x1, Uart x1, Digital x2 |
尺寸 | 63mm x 30mm x14.4mm |
