EPM570T144C5N(中古)

產品貨號：3680101003505
區號：Za01-01
品牌：
原廠貨號：

全店，滿千免運優惠(限郵寄和超商純取貨)

全店，本賣場無實體店面，無提供自取服務，敬請見諒。

NT$189

{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}

{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}

一次最大商品購買數量限制為 99999

該數量不適用，請填入有效的數量。

售完

若想購買，請聯絡我們。

商品描述

送貨及付款方式

商品描述

EPM570T144C5N Introduction

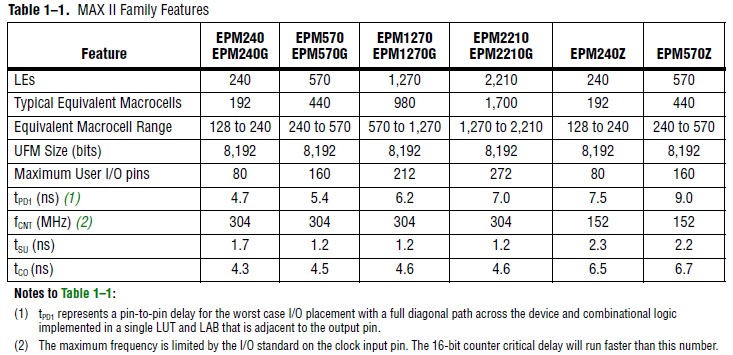

The MAX® II family of instant-on, non-volatile CPLDs is based on a 0.18-μm, 6-layermetal-
flash process, with densities from 240 to 2,210 logic elements (LEs) (128 to 2,210
equivalent macrocells) and non-volatile storage of 8 Kbits. MAX II devices offer high
I/O counts, fast performance, and reliable fitting versus other CPLD architectures.
Featuring MultiVolt core, a user flash memory (UFM) block, and enhanced in-system
programmability (ISP), MAX II devices are designed to reduce cost and power while
providing programmable solutions for applications such as bus bridging, I/O
expansion, power-on reset (POR) and sequencing control, and device configuration
control.

EPM570T144C5N Features

The MAX II CPLD has the following features:
■ Low-cost, low-power CPLD
■ Instant-on, non-volatile architecture
■ Standby current as low as 29 μA
■ Provides fast propagation delay and clock-to-output times
■ Provides four global clocks with two clocks available per logic array block (LAB)
■ UFM block up to 8 Kbits for non-volatile storage

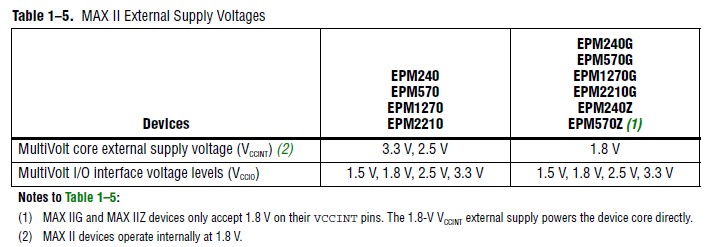

■ MultiVolt core enabling external supply voltages to the device of either 3.3 V/2.5 V or 1.8 V

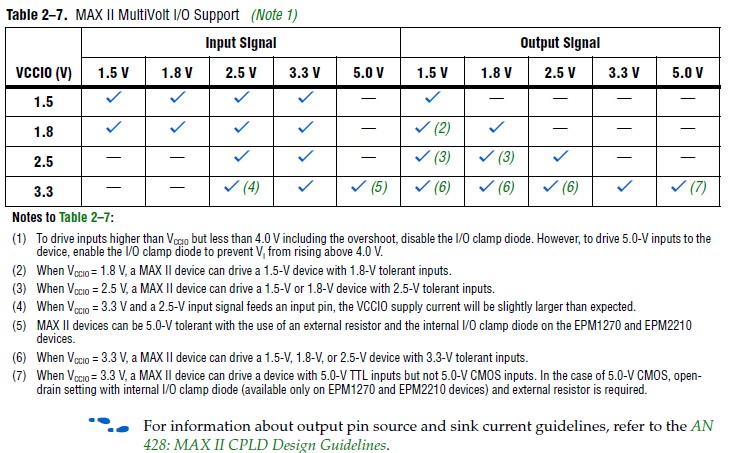

■ MultiVolt I/O interface supporting 3.3-V, 2.5-V, 1.8-V, and 1.5-V logic levels
■ Bus-friendly architecture including programmable slew rate, drive strength,
   bushold,and programmable pull-up resistors
■ Schmitt triggers enabling noise tolerant inputs (programmable per pin)
■ I/Os are fully compliant with the Peripheral Component Interconnect Special Interest Group (PCI SIG)
   PCI Local Bus Specification, Revision 2.2 for 3.3-V operation at 66 MHz
■ Supports hot-socketing
■ Built-in Joint Test Action Group (JTAG) boundary-scan test (BST) circuitry
   compliant with IEEE Std. 1149.1-1990
■ ISP circuitry compliant with IEEE Std. 1532
