產品貨號:368010400170
區號:Ma37-15,Kd01-01-A02
品牌:YUDEN
原廠貨號:NRH3012T3R3MN
全店,滿千郵寄超商純取免運優惠
商品存貨不足,未能加入購物車
您所填寫的商品數量超過庫存
{{'products.quick_cart.out_of_number_hint'| translate}}
{{'product.preorder_limit.hint'| translate}}
每筆訂單限購 {{ product.max_order_quantity }} 件
現庫存只剩下 {{ quantityOfStock }} 件
商品規格
標準電感[μH] | 3.3 |
電感容差 | ±20% |
自諧振 頻率 [MHz](分鐘) | 55 |
直流電阻 [Ω](±20%) | 0.150 |
額定電流※)[mA] | |
飽和電流:Idc1 | Max:1600 Typ:1900 |
溫升電流:Idc2 | Max:1000 Typ:1260 |
測量 頻率[kHz] | 100 |
註解 | ※) 飽和電流值(Idc1)是電感下降至30%時的直流電流值。 (20℃時) ※) 溫升電流值(Idc2)是溫度上升到40℃時的直流電流值。 (20℃時) ※) 額定電流是同時滿足電流值、飽和電流值和溫升電流值的直流電流值。 |

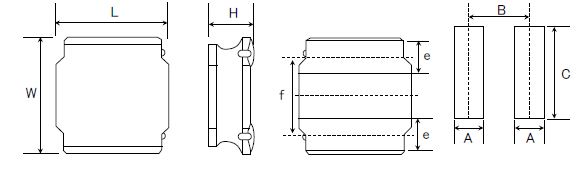

尺寸圖
L | 3.0±0.1 (0.118±0.004) |
W | 3.0±0.1 (0.118±0.004) |
H | 1.2(max) 0.047(max) |
e | 0.9±0.2 (0.035±0.008) |
f | 1.9±0.2 (0.075±0.008) |
