HR911102A Ethernet Network Transformer, RJ45

HR911102A Ethernet Network Transformer, RJ45

Network transformer for Ethernet interfaces, meeting IEEE802.3
1500Vrms isolation | OCL 350uH min | insertion loss max 1.0dB from 300KHz to 100MHz
Saves PCB space and simplifies layout

滿千免運優惠(限郵寄和超商純取貨) on order

本賣場無實體店面，無提供自取服務，敬請見諒。 on order

NT$92
{{shoplineProductReview.avg_score}}( {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}} )
{{amazonProductReview.avg_rating}}( ({{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}) )
Quantity Product set quantity
The maximum quantity per submit is 99999
This quantity is invalid, please enter a valid quantity.
Sold Out

Not enough stock.
Your item was not added to your cart.

Not enough stock.
Please adjust your quantity.

{{'products.quick_cart.out_of_number_hint'| translate}}

{{'product.preorder_limit.hint'| translate}}

Limit {{ product.max_order_quantity }} per order.

Only {{ quantityOfStock }} item(s) left.

Please message the shop owner for order details.
Description
Shipping & Payment
Description

商品簡介

  • Designed for Network Interface Card Application
  • Meets or Exceeds IEEE802.3 standards including 350uH Min OCL with 8mADC
  • High performance for EMI suppression, Crosstalk, Return Loss and Consistent Electrical
  • Minimum 1500Vrms isolation per lEEE802.3 requirement
  • Minimize PCB space and Simplify PCB Layout
  • Less magnetic components to place on PCB, Higher reliability and yields

商品規格

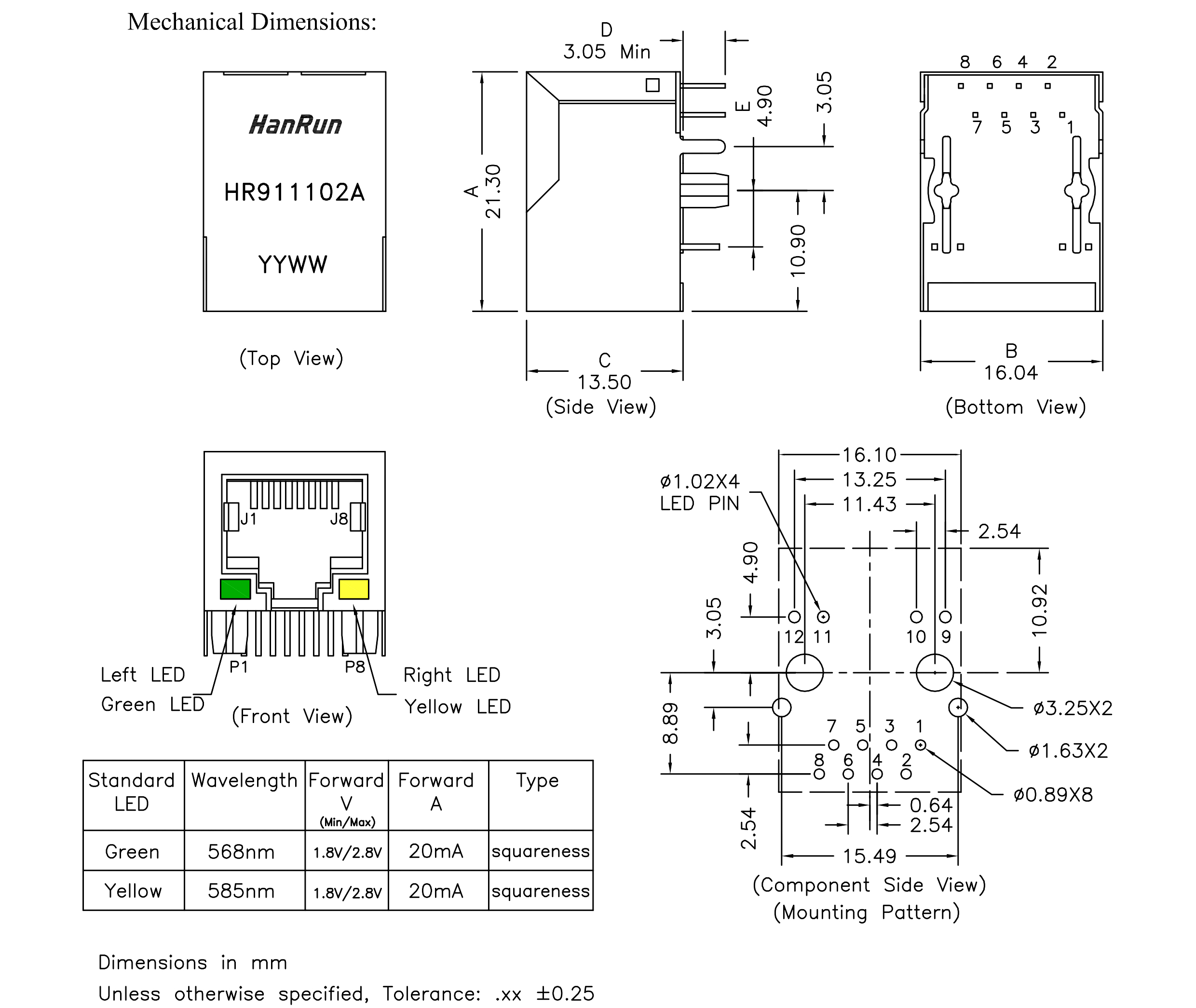

HR911102A,規格

原理圖

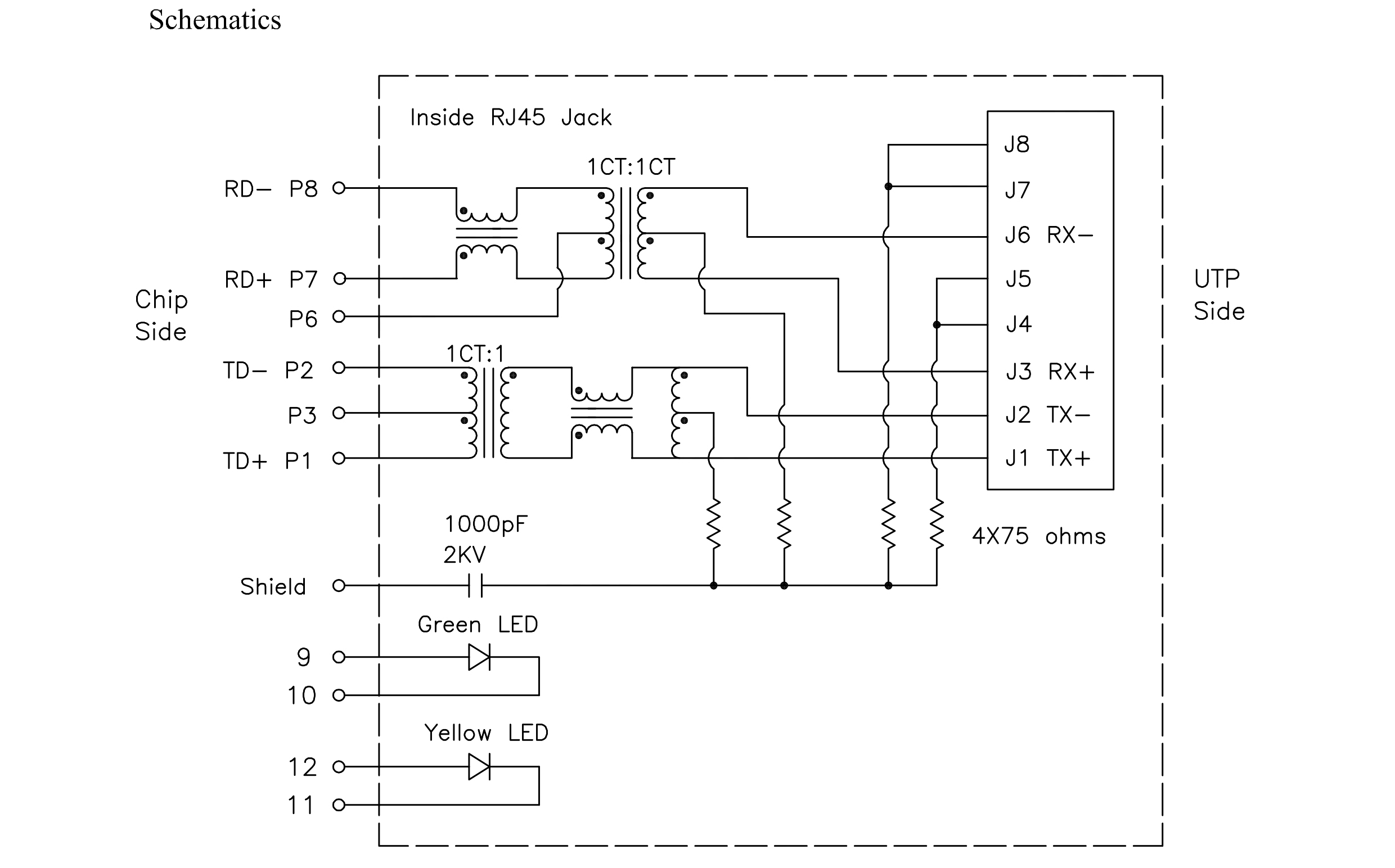

HR911102A,原理圖

  • Electrical Specification @250C
  • Isolation: 1500Vrms (UTP Side to Chip Side)
  • OCL: 350uH Minimum @100KHz 100mV with 8mADC
  • Insertion Loss: -1.0dB Maximum @300KHz ~ 100MHz
  • Return Loss:
    -20dB Minimum @1MHz ~ 10MHz
    -16dB Minimum @10MHz ~ 30MHz
    -12dB Minimum @30MHz ~ 60MHz
    -10dB Minimum @60MHz ~ 80MHz
  • Common Mode Rejection:
    -30dB Minimum @1MHz ~ 50MHz
    -20dB Minimum @50MHz ~ 150MHz
  • Crosstalk:
    -40dB Minimum @1MHz ~ 30MHz
    -35dB Minimum @30MHz ~ 60MHz
    -30dB Minimum @60MHz ~ 100MHz

下載資料

Datasheet


出貨清單

  • 網路變壓器 HR911102A x 1
