Single-Deck Rotary Band Switch, 3 / 4 / 5 / 6 / 12 Position

Single-Deck Rotary Band Switch, 3 / 4 / 5 / 6 / 12 Position

Single-deck rotary band switch for multi-position selection
Contacts 0.3A 125VAC | Size Dia. 25 x 40mm | 30 degree index angle | Contact resistance 25 mOhm max | Insulation resistance 100 MOhm min at 500V DC
Positions: 3 / 4 / 5 / 6 / 12

滿千免運優惠(限郵寄和超商純取貨) on order

本賣場無實體店面，無提供自取服務，敬請見諒。 on order

{{ productService.variationPriceMemberTag(variationSelected) }}
{{ 'product.member_only' | translate }}
{{shoplineProductReview.avg_score}}( {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}} )
{{amazonProductReview.avg_rating}}( ({{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}) )
{{ title.name_translations | translateModel }} : {{variationName[$index] | translateModel}}
Quantity
The maximum quantity per submit is 99999
This quantity is invalid, please enter a valid quantity.
Sold Out

Not enough stock.
Your item was not added to your cart.

Not enough stock.
Please adjust your quantity.

{{'products.quick_cart.out_of_number_hint'| translate}}

{{'product.preorder_limit.hint'| translate}}

Limit {{ product.max_order_quantity }} per order.

Only {{ quantityOfStock }} item(s) left.

Please message the shop owner for order details.
Description
Shipping & Payment
Description

商品規格

  • 接點電流：0.3A 125VAC

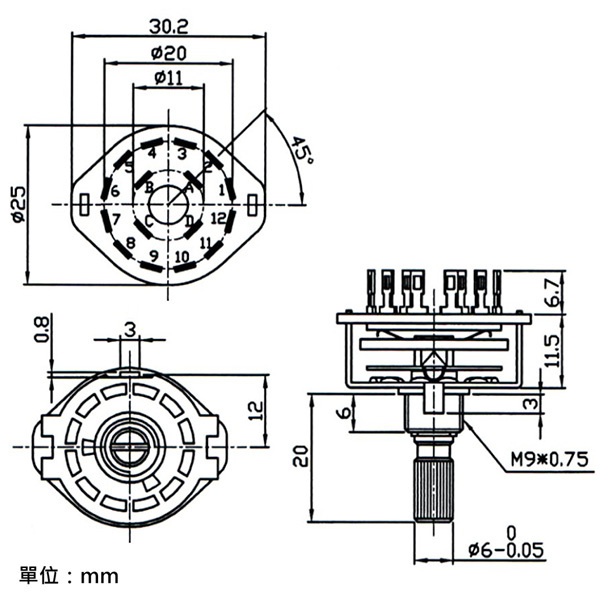

  • 尺寸:25φx40(mm)
  • 段數:3/4/5/6/12
  • 切換角度:30度
  • 層數:1
  • 接觸電阻：25mΩ MAX
  • 絕緣電阻：100MΩ min 500V DC
  • 介電強度：500V/1min






規格 產品貨號 區號 品牌 原廠貨號
3段 368011000426 Pe22-02   5060A
4段 368011000427 Pe21-04   5060B
5段 368011000428 Pe24-01   5060C
6段 368011000429 Pe01-05   5060D
12段 368011000430 Pe23-01   5060E
