M5StickC ADC HAT 16-Bit Analogue to Digital Converter Module ADS1100 U069

M5StickC ADC HAT 16-Bit Analogue to Digital Converter Module ADS1100 U069

16-bit A/D conversion HAT for M5StickC, for accurate analogue measurements with little effort
ADS1100 | 16-bit | input 0-12V | PGA 1/2/4/8 | 8-128SPS | I2C | 25x14x14mm
Arduino and UIFlow (Blockly, MicroPython) supported

滿千免運優惠(限郵寄和超商純取貨) on order

本賣場無實體店面，無提供自取服務，敬請見諒。 on order

NT$210
{{shoplineProductReview.avg_score}}( {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}} )
{{amazonProductReview.avg_rating}}( ({{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}) )
Quantity Product set quantity
The maximum quantity per submit is 99999
This quantity is invalid, please enter a valid quantity.
Sold Out

Not enough stock.
Your item was not added to your cart.

Not enough stock.
Please adjust your quantity.

{{'products.quick_cart.out_of_number_hint'| translate}}

{{'product.preorder_limit.hint'| translate}}

Limit {{ product.max_order_quantity }} per order.

Only {{ quantityOfStock }} item(s) left.

Please message the shop owner for order details.
Description
Shipping & Payment
Description

商品簡介


ADC Hat是一款兼容M5SticKC的AD轉換模組，內部集成ADC轉換晶片ADS1100，具備全差分、16位、自校準、Δ-Σ模/ 數轉換等特性，使得用戶能夠非常輕鬆的獲得精確的測量結果。ADS1100包含一個具有可調增益的Δ-Σ A / D轉換器內核，一個時鐘發生器和一個I2C接口，允許-5~ + 5V的差分輸入，但我們通過增加該IC的外圍電路設計將輸入限制為0~12V。


商品特性

●輸入電壓: 0-12V
●開發平台: Arduino, UIFlow(Blockly, MicroPython)
●ADS1100:
16位無漏失碼
連續自校準
單循環轉換
內置可編程增益放大器（增益倍數 = 1, 2, 4, 8）
低噪聲：4μVp-p
可編程數據速率：8SPS至128SPS
內部系統時鐘
I2C 接口




商品應用

●模擬信號捕獲



商品簡介


淨重 6g
產品尺寸 25x14x14 (mm)




電路圖






下載資料


ADS1100 Datasheet



EasyLoader



1-EasyLoader是一個簡潔快速的程序燒錄器，每一個產品頁面裡的EasyLoader都提供了一個與產品相關的案例程序，通過簡單步驟將其燒錄至主控，能夠進行一系列的功能驗證.(目前EasyLoader僅適用於Windows操作系統)

2-下載軟件後，雙擊運行應用程序，將M5設備通過數據線連接至電腦,選擇端口參數，點擊"Burn" 即可開始燒錄.(為M5StickC燒錄時，請將波特率設置在750000或115200)



範例程序

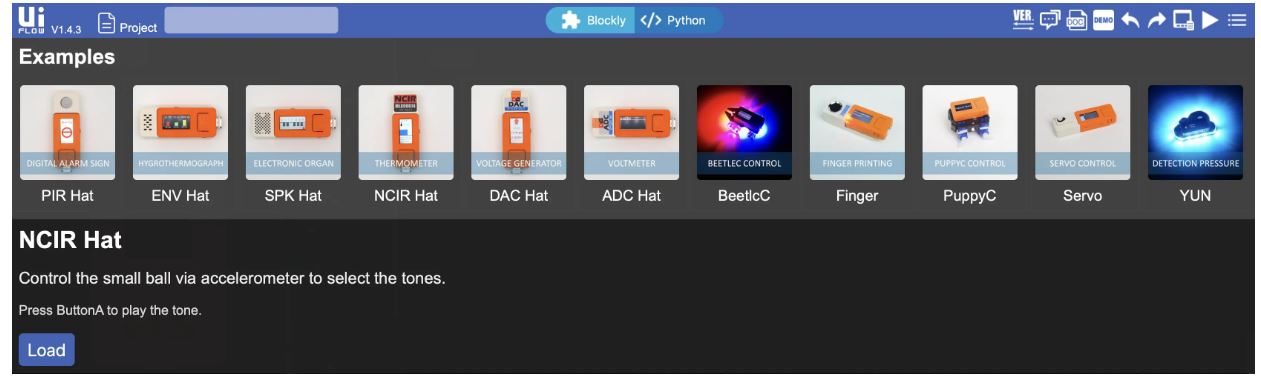

1.Arduino IDE


2.UIFlow




管腳映射


M5StickC GPIO0 GPIO26 5V GND
HAT ADC SDA SCL 5V GND




出貨清單


  • M5StickC ADC HAT ADS1100 類比數位轉換器模組-U069 x 1
