View All / Hardware / Enclosures
PLC Control Enclosure with Terminal Block, BOX-12 / BOX-13 / BOX-14

PLC Control Enclosure with Terminal Block, BOX-12 / BOX-13 / BOX-14

PLC control enclosure with a built-in terminal block for control circuit wiring
Terminal block rated 300V 25A | dielectric strength AC2000V/min | accepts 14-22AWG | -40C to +105C
BOX-12 (20P) 145x90x73mm | BOX-13 (14P) 115x90x41mm | BOX-14 (14P) 115x90x73mm

滿千免運優惠(限郵寄和超商純取貨) on order

本賣場無實體店面，無提供自取服務，敬請見諒。 on order

{{ productService.variationPriceMemberTag(variationSelected) }}
{{ 'product.member_only' | translate }}
{{shoplineProductReview.avg_score}}( {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}} )
{{amazonProductReview.avg_rating}}( ({{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}) )
{{ title.name_translations | translateModel }} : {{variationName[$index] | translateModel}}
Quantity
The maximum quantity per submit is 99999
This quantity is invalid, please enter a valid quantity.
Sold Out

Not enough stock.
Your item was not added to your cart.

Not enough stock.
Please adjust your quantity.

{{'products.quick_cart.out_of_number_hint'| translate}}

{{'product.preorder_limit.hint'| translate}}

Limit {{ product.max_order_quantity }} per order.

Only {{ quantityOfStock }} item(s) left.

Please message the shop owner for order details.
Description
Shipping & Payment
Description

商品規格

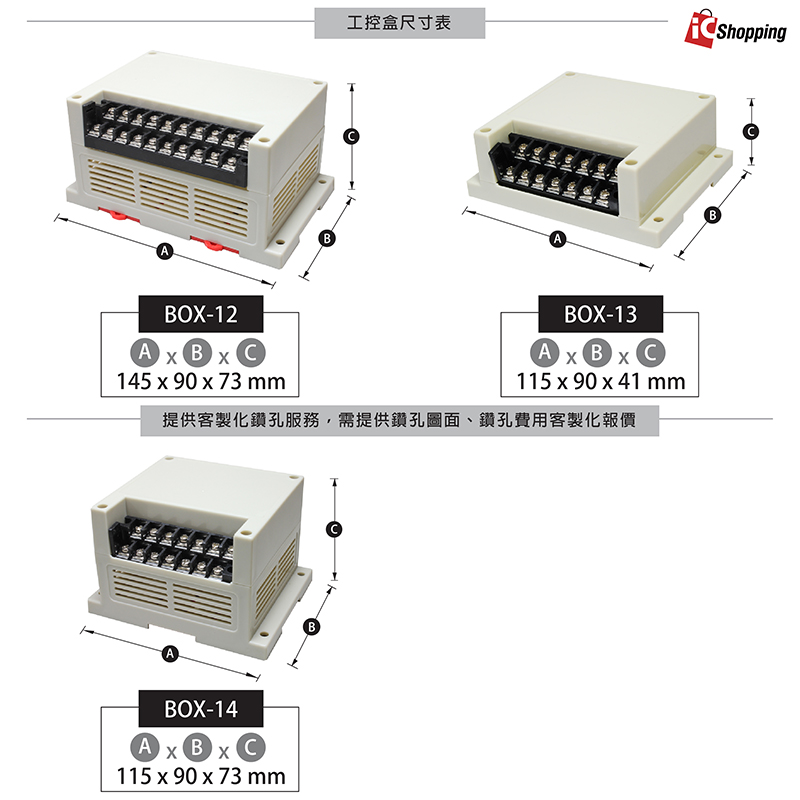

工控盒外型尺寸

工控盒_尺寸規格

端子台規格

額定值：300V 25A
絕緣耐壓：AC2000V/MIN
絕緣電阻：DC500V時500M歐姆以上
使用溫度範圍：-40°C/+105°C
螺桿扭矩值：0.8N.m
適用電線：14-22AWG

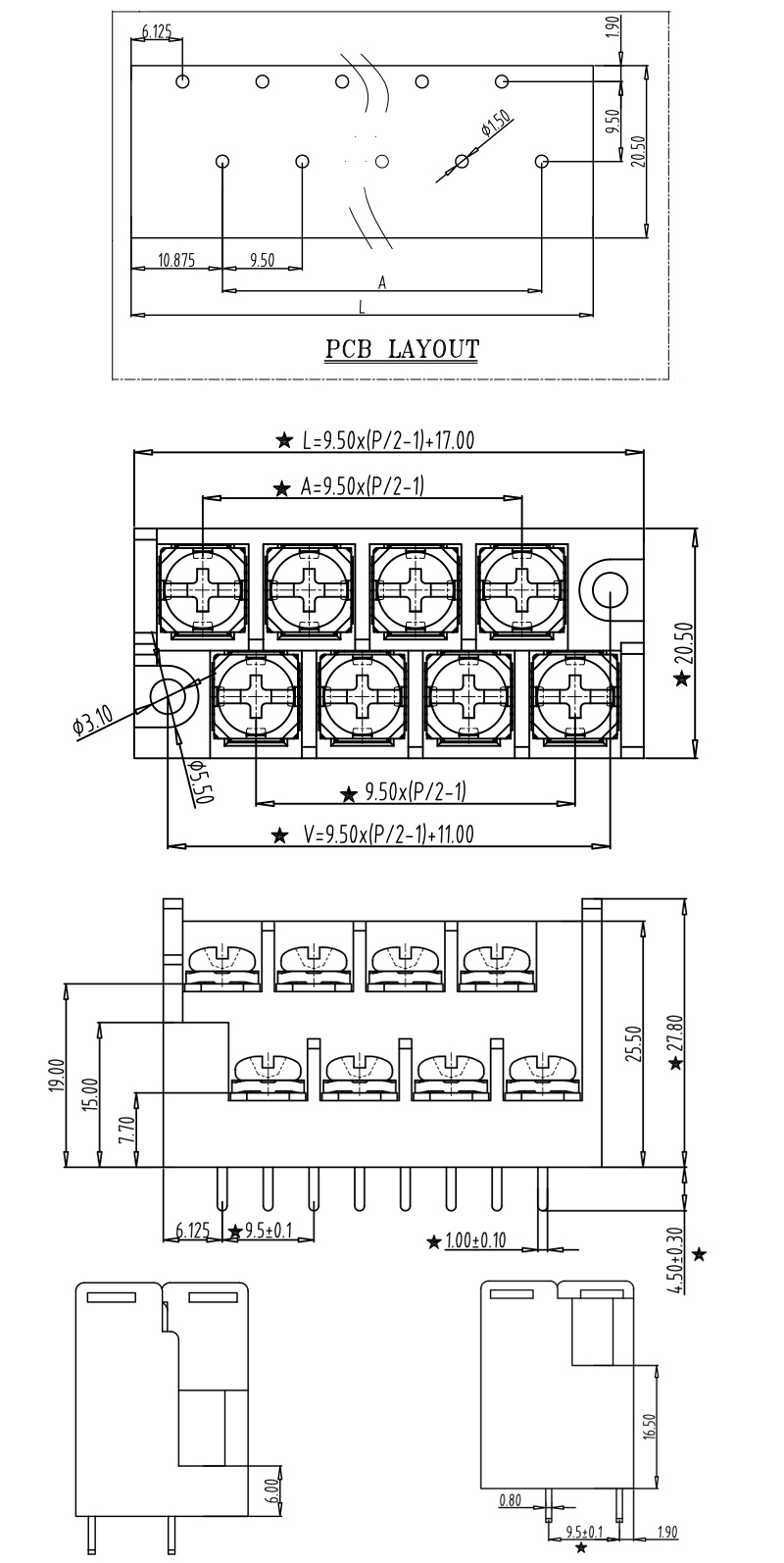

端子台_尺寸規格

規格 產品貨號 區號
BOX-12 368080100338 Kb03-01-C03
BOX-13 368080100339 Kb03-01-C04
BOX-14 368080100340 Me02-04-E
