產品貨號:368112100007
區號:Qh05-09
品牌:CIRCUS Pi
原廠貨號:
全店,滿千免運優惠(限郵寄和超商純取貨)
全店,本賣場無實體店面,無提供自取服務,敬請見諒。
商品存貨不足,未能加入購物車
您所填寫的商品數量超過庫存
{{'products.quick_cart.out_of_number_hint'| translate}}
{{'product.preorder_limit.hint'| translate}}
每筆訂單限購 {{ product.max_order_quantity }} 件
現庫存只剩下 {{ quantityOfStock }} 件
商品簡介 |
紅外線發射模組通過LED發射紅外線訊號,透過連接Arduino與micro:bit...等微控制器。能應用在模擬一般紅外線遙控器來控制家電,或是搭配紅外線接收模組製作遙控車、控制機器人與智能家居。
【範例說明】
本範例使用 Arduino Uno Rev3(原裝) ,連接Circus 紅外線發射模組。
每隔5秒發送一次訊息。

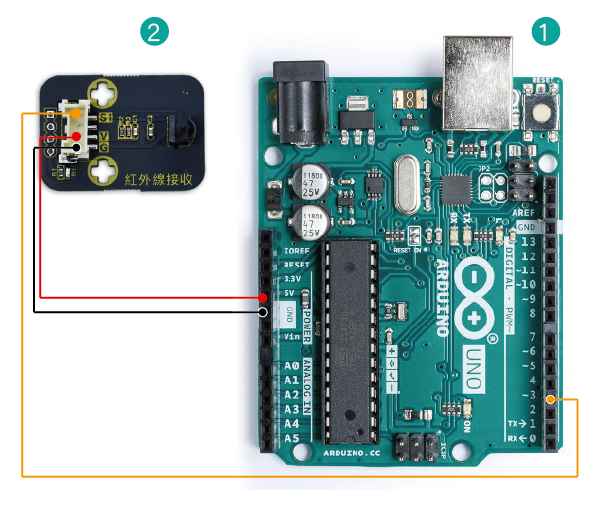

【電路圖】
本範例使用之程式庫為 「 IRremote」,可至Arduino IDE內的管理程式庫搜尋並安裝。
該程式庫已給定數位訊號腳位,因此本範例中的訊號腳位設為 「D3」 。
Arduino 程式撰寫範例
本撰寫範例將會有兩個步驟
1. 安裝程式庫
2. 程式碼撰寫
1. 安裝程式庫
1-1. 確認網路是否已連線到網際網路。

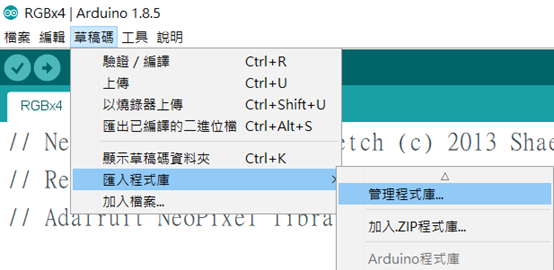

1-2. 開啟 Arduino 的 IDE 介面後,請到上方的功能選項中,點選 「草稿碼」-> 「匯入程式庫」-> 「管理程式庫」。

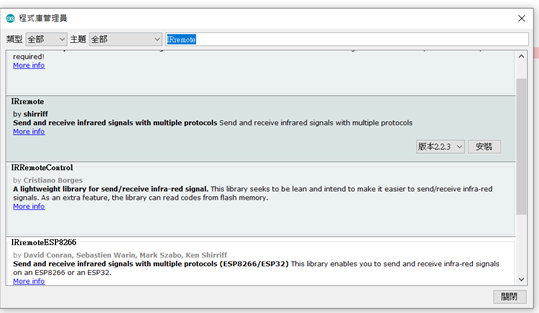

1-3. 在搜尋欄位中,輸入 「IRremote」,找到該項目後便可點擊「安裝」按鈕,開始安裝程式庫。
2. 程式碼撰寫
相關程式碼請點擊此連結
商品規格 |
供電電壓 | 3.3 ~ 5V DC |
LED尺寸 | 3 mm |
發射角度 | 36度 |
波長 | 940mm |
範例程式 |
出貨清單 |
