MPU6050

產品貨號：368010101969
區號：Mc04-34
品牌：
原廠貨號：368010101969

全店，滿千郵寄超商純取免運優惠

NT$90

{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}

{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}

一次最大商品購買數量限制為 99999

該數量不適用，請填入有效的數量。

售完

若想購買，請聯絡我們。

商品描述

送貨及付款方式

商品描述

商品規格

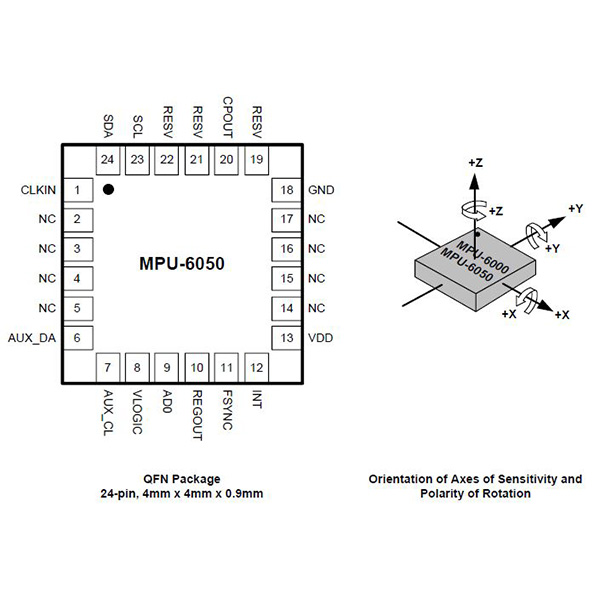

Pin Number	Pin Name	SPI Mode Function
1	CLKIN	Optional external reference clock input. Connect to GND if unused.
6	AUX_DA	I2C master serial data, for connecting to external sensors
7	AUX_CL	I2C Master serial clock, for connecting to external sensors
8	/CS	SPI chip select (0=SPI mode)
8	VLOGIC	Digital I/O supply voltage
9	AD0 / SDO	I2C Slave Address LSB (AD0); SPI serial data output (SDO)
9	AD0	I2C Slave Address LSB (AD0)
10	REGOUT	Regulator filter capacitor connection
11	FSYNC	Frame synchronization digital input. Connect to GND if unused.
12	INT	Interrupt digital output (totem pole or open-drain)
13	VDD	Power supply voltage and Digital I/O supply voltage
18	GND	Power supply ground
19,21	RESV	Reserved. Do not connect.
20	CPOUT	Charge pump capacitor connection
22	RESV	Reserved. Do not connect.
23	SCL / SCLK	I2C serial clock (SCL); SPI serial clock (SCLK)
23	SCL	I2C serial clock (SCL)
24	SDA / SDI	I2C serial data (SDA); SPI serial data input (SDI)
24	SDA	I2C serial data (SDA)
2, 3, 4, 5, 14, 15, 16, 17	NC	Not internally connected. May be used for PCB trace routing.

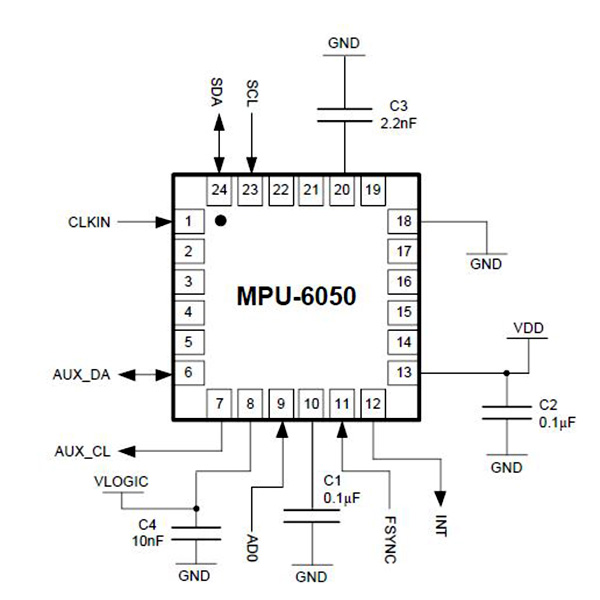

Component	Label	Specification	Quantity
Regulator Filter Capacitor (Pin 10)	C1	Ceramic, X7R, 0.1μF ±10%, 2V	1
VDD Bypass Capacitor (Pin 13)	C2	Ceramic, X7R, 0.1μF ±10%, 4V	1
Charge Pump Capacitor (Pin 20)	C3	Ceramic, X7R, 2.2nF ±10%, 50V	1
VLOGIC Bypass Capacitor (Pin 8)	C4*	Ceramic, X7R, 10nF ±10%, 4V	1

* MPU-6050 Only.

下載文件

Datasheet

出貨清單

MPU6050 x 1
