產品貨號:368010102053
區號:Ma08-19,Kc04-03-E02-06
品牌:
原廠貨號:1N4148W-7-F
全店,滿千郵寄超商純取免運優惠
商品存貨不足,未能加入購物車
您所填寫的商品數量超過庫存
{{'products.quick_cart.out_of_number_hint'| translate}}
{{'product.preorder_limit.hint'| translate}}
每筆訂單限購 {{ product.max_order_quantity }} 件
現庫存只剩下 {{ quantityOfStock }} 件
商品簡介 |
Features
• Fast Switching Speed
• Surface Mount Package Ideally Suited for Automatic Insertion
• For General Purpose Switching Applications
• High Conductance
• Lead Free/RoHS Compliant
• Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case: SOD-123
• Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020C
• Terminals: Solderable per MIL-STD-202, Method 208
• Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe)
• Polarity: Cathode Band
• Type Code: T6, T4
• Weight: 0.01 grams (approximate)
商品規格 |

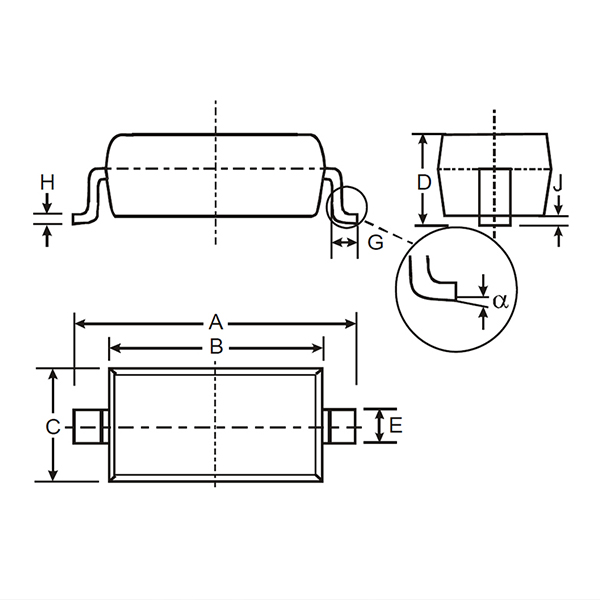

Dim | A | B | C | D | E | G | H | J | α | |
Min | 3.55 | 2.55 | 1.40 | - | 0.45 | 0.55 Typical | 0.25 | 0.11 Typical | - | 0° |
Max | 3.85 | 2.85 | 1.70 | 1.35 | 0.65 | - | 0.10 | 8° | ||
All Dimensions in mm |
