ETA3410 同步降壓IC

產品貨號：368010102121
區號：Ma03-09
品牌：
原廠貨號：

全店，滿千免運優惠(限郵寄和超商純取貨)

NT$45

{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}

{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}

一次最大商品購買數量限制為 99999

該數量不適用，請填入有效的數量。

售完

若想購買，請聯絡我們。

商品描述

送貨及付款方式

商品描述

商品規格

DESCRIPTION

The ETA3410 is a high-efficiency, DC-to-DC step-down switching regulator, capable of delivering up to 2A of output current. The devices operate from an input voltage range of 2.6V to 5.5V and provide output voltages from 0.6V to VIN, making the ETA3410 ideal for low voltage power conversions. Running at a fixed frequency of 3MHz allows the use of small inductance value and low DCR inductors, thereby achieving higher efficiencies. Other external components, such as ceramic input and output caps, can also be small due to higher switching frequency, while maintaining exceptional low noise output voltages. Built-in EMI reduction circuitry makes this converter ideal power supply for RF applications. Internal soft-start control circuitry reduces inrush current. Short-circuit and thermal-overload protection improves design reliability. ETA3410 is housed in a tiny DFN2x2-8L package

FEATURES

● up to 96%
● Up to 2A Max Output Current
● 3MHz Frequency
● Internal Compensation
● Clock Dithering
● Tiny DFN2x2-8L Package

APPLICATIONS

●USB ports/Hubs
●Hot Swaps
●Cellphones
●Tablet PC
●Set Top Boxes

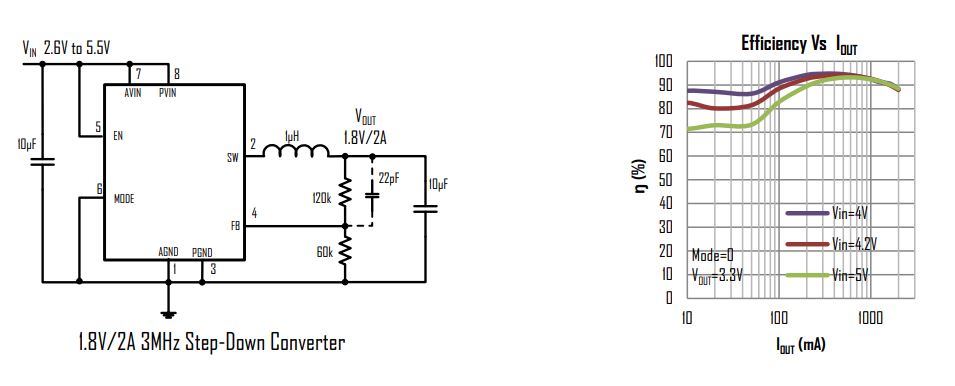

TYPICAL APPLICATION

ETA3410 6V/2A 3MHz 同步降壓轉換器

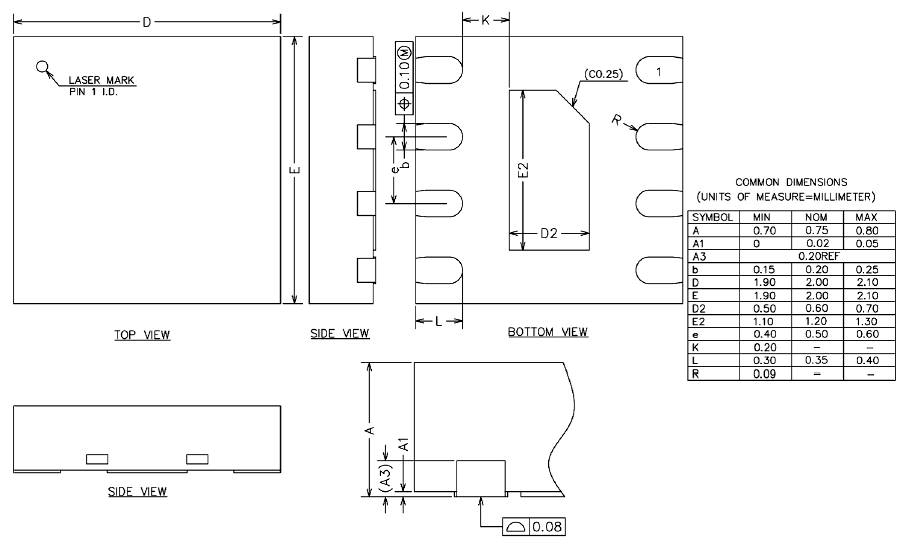

封裝圖

COMMON DIMENSIONS
(Units of measure=millimeter)

Symbol	Min	Nom	Max
A	0.70	0.75	0.80
A1	0	0.02	0.05
A3	0.20 REF
b	0.15	0.20	0.25
D	1.90	2.00	2.10
E	1.90	2.00	2.10
D2	0.50	0.60	0.70
E2	1.10	1.20	1.30
e	0.40	0.50	0.60
K	0.20	-	-
L	0.30	0.35	0.40
R	0.09	-	-

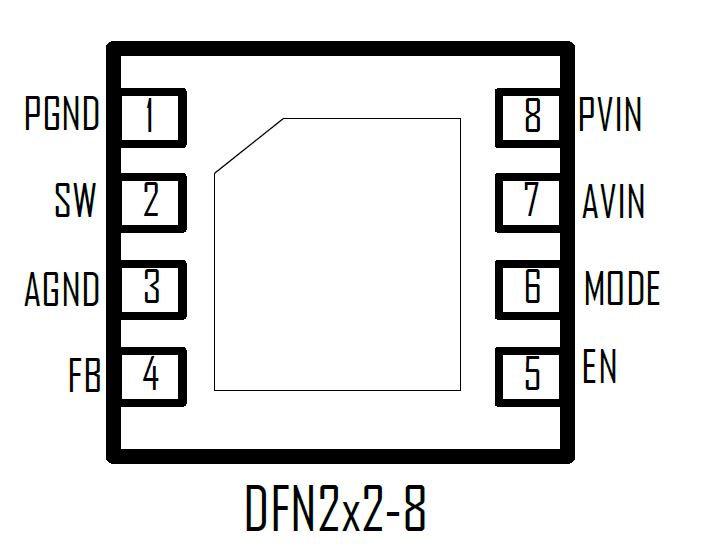

腳位圖

文件下載

Datasheet

出貨清單

ETA3410 6V/2A 3MHz 同步降壓轉換器 x 1
