產品貨號:368020101627
區號:La07-01
品牌:
原廠貨號:JM24181-2R(SMT)
全店,滿千免運優惠(限郵寄和超商純取貨)
商品存貨不足,未能加入購物車
您所填寫的商品數量超過庫存
{{'products.quick_cart.out_of_number_hint'| translate}}
{{'product.preorder_limit.hint'| translate}}
每筆訂單限購 {{ product.max_order_quantity }} 件
現庫存只剩下 {{ quantityOfStock }} 件
商品簡介 |
SPECIFICATIONS Electrical | |
Voitase Rating | 100V AC,DC |
Current Rating | 2A AC, DC |
Withstand Voltage | 800V AC/min |
Insulation Resistance | I000 MΩ/Min. |
Temperature Range | -25°C ~ +85°C |
Material | |
Wafer. Hich Temperature Plastic | |
Nylon 46 Cr 6T UL9AV-0 | |
Pin:High Strength Brass With Tin Over Nicke! Plated | |
Applicable PC Board Thickness :0.8~1.6mm | |
Contact Resistance: Initia Value 10mΩ max. | |
Afterenvironmental testing :20mΩ max. |

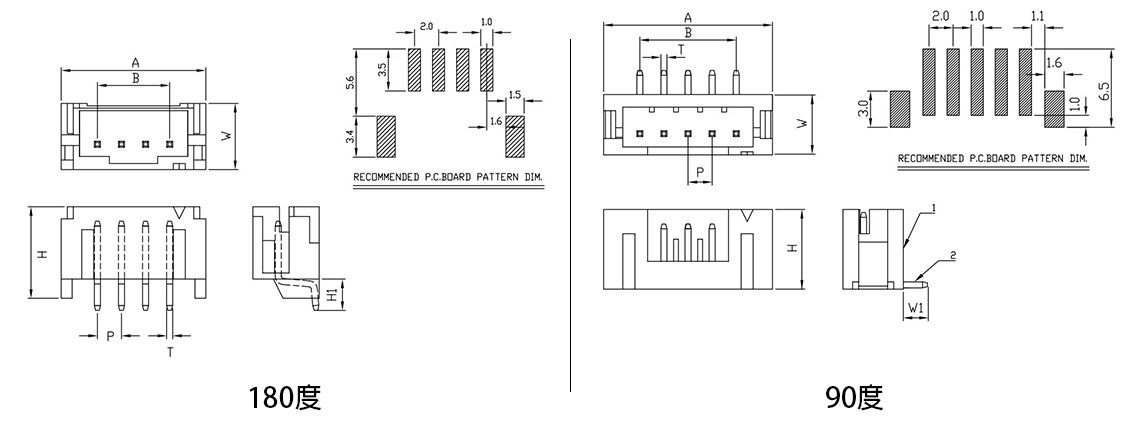

CKT | A | B | C |
2 | 2.00 | 8.00 | 4.80 |
3 | 4.00 | 10.00 | 6.80 |
4 | 6.00 | 12.00 | 8.80 |
5 | 8.00 | 14.00 | 10.80 |
6 | 10.00 | 16.00 | 12.80 |
7 | 12.00 | 18.00 | 14.80 |
8 | 14.00 | 20.00 | 16.80 |
9 | 16.00 | 22.00 | 18.80 |
10 | 18.00 | 24.00 | 20.80 |
11 | 20.00 | 26.00 | 22.80 |
12 | 22.00 | 28.00 | 24.80 |
13 | 24.00 | 30.00 | 26.80 |
14 | 26.00 | 32.00 | 28.80 |
15 | 28.00 | 34.00 | 30.80 |
16 | 30.00 | 36.00 | 32.80 |
