產品貨號:368020102076
區號:Pe21-08
品牌:
原廠貨號:
全店,滿千郵寄超商純取免運優惠
商品存貨不足,未能加入購物車
您所填寫的商品數量超過庫存
{{'products.quick_cart.out_of_number_hint'| translate}}
{{'product.preorder_limit.hint'| translate}}
每筆訂單限購 {{ product.max_order_quantity }} 件
現庫存只剩下 {{ quantityOfStock }} 件
商品簡介
應用於印刷線電路板電器連接中的接線端子業內並成為PCB端子或PCB連接器,用於實現電器連接的一種配件產品。
商品規格
參考標準 | UL | IEC |
額定電壓 | 300V | 250V |
額定電流 | 10A | 24A |
使用線徑 | 22-12 AWG | 2.5mm² |
耐電壓 | AC2000V / 1min | |
扭力距 | 0.4 Nm(3.5Lb-in) | |
溫度範圍 | -40~105°C | |
剝線長度 | 6.0-7.0mm | |

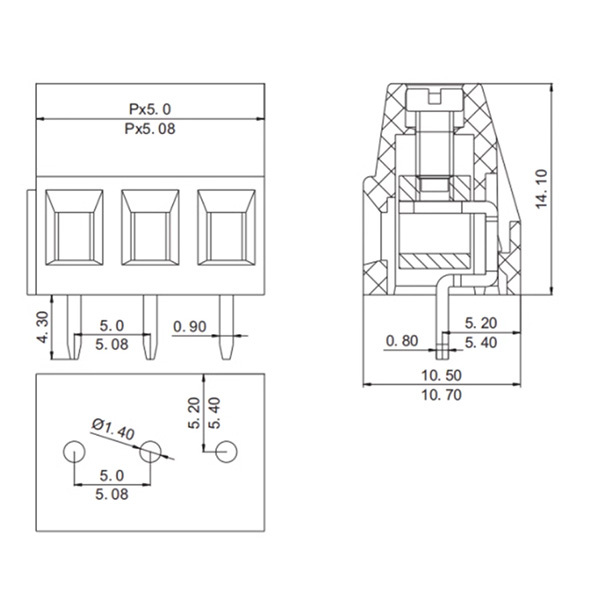

尺寸 | ||
間距 | 5.0 / 5.08mm | |
級數 | 2P 3P | |
材質 | ||
塑膠材質 | PA66 UL94V-0 | |
焊針 | 黃銅 鍍錫 | |
方塊 | 黃銅 鍍錫 |
