1.54 吋全彩 IPS LCD,焊接式 FPC 排線。
240x240|ST7789V|4 線 SPI|3.3V|12Pin 0.7mm 焊接式
顯示區域 27.72x27.72mm|-20~70°C
常見說法:ST7789
MPN: --
SKU: 368030101115
REF: Le14-09
全店,滿千免運優惠(限郵寄和超商純取貨)
全店,本賣場無實體店面,無提供自取服務,敬請見諒。
商品存貨不足,未能加入購物車
您所填寫的商品數量超過庫存
{{'products.quick_cart.out_of_number_hint'| translate}}
{{'product.preorder_limit.hint'| translate}}
每筆訂單限購 {{ product.max_order_quantity }} 件
現庫存只剩下 {{ quantityOfStock }} 件
| 尺寸 | 1.54 英吋 | ||
| 材質 | 高畫質 IPS LCD | ||
| 解析度 | 240(H) RGB x240(V) | ||
| 驅動晶片 | ST7789V | ||
| 通訊埠 | 4 Line SPI | ||
| 顯示顏色 | 全彩 | ||

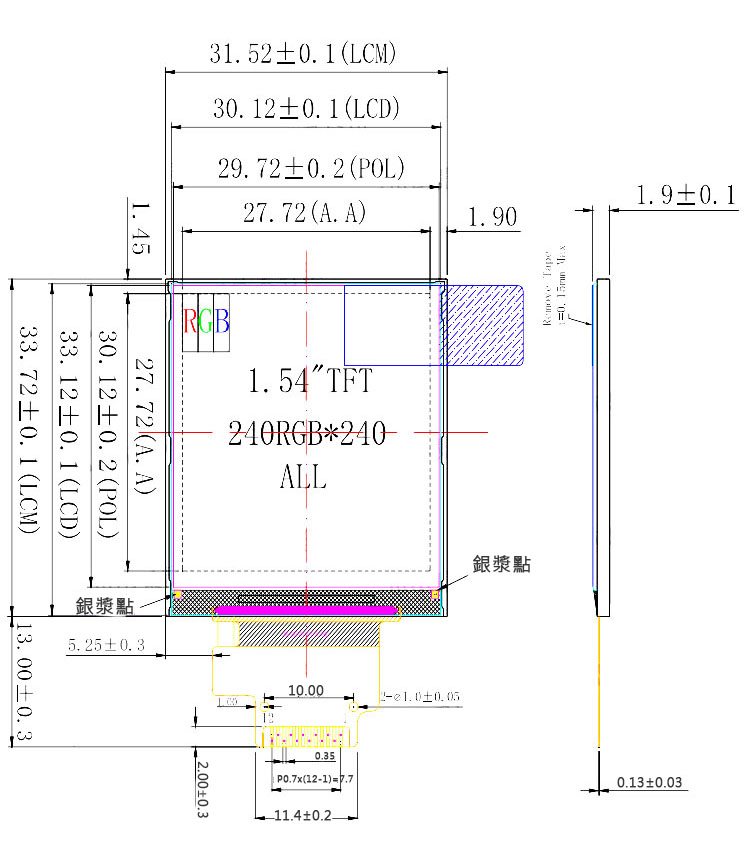

| 顯示區域 | 27.72(H) x 27.72(V) mm | ||
| 面板尺寸 | 31.52(H)x33.72(V)x1.9(D) mm | ||
| 像素間距 | 0.1155(H) x 0.1155(V) mm | ||
| Pin腳數量 | 12Pin(0.7mm間距焊接式 FPC) | ||
| 視角方向 | All View | ||
| 工作電壓 | 3.3 V | ||
| 工作電流 | 30 ma | ||
| 背光類型 | 3 White LED Parallel | ||
| 工作溫度 | -20 ~ 70 °C | ||
| Pin | 描述 | ||
| 1 | GND | ||
| 2 | LEDK | ||
| 3 | LEDA | ||
| 4 | VDD | ||
| 5 | GND | ||
| 6 | GND | ||
| 7 | D/C | ||
| 8 | CS | ||
| 9 | SCL | ||
| 10 | SDA | ||
| 11 | Reset | ||
| 12 | GND | ||
