產品貨號:368030501962
區號:Qe01-09
品牌:
原廠貨號:584814
全店,滿千郵寄超商純取免運優惠
商品存貨不足,未能加入購物車
您所填寫的商品數量超過庫存
{{'products.quick_cart.out_of_number_hint'| translate}}
{{'product.preorder_limit.hint'| translate}}
每筆訂單限購 {{ product.max_order_quantity }} 件
現庫存只剩下 {{ quantityOfStock }} 件
商品規格 |
5 M06Arduino UNO 和 Arduino Mega2560及Arduino DUE等開發板直插,無需任何接線,全部開源,提供Arduino文件。本款也支援STM32,C51等各種常規單片機,提供開發代碼
名稱 | 參數 |
螢幕顯示顏色 | RGB 65K |
SKU | MAR3502(無觸控螢幕) |
螢幕尺寸 | 3.5吋 |
類型 | TFT |
驅動IC | ILI9486 |
解析度 | 480*320 (Pixel) |
模組介面 | 8位元 並行接頭 |
有效面積 | 73.44*48.96(mm) |

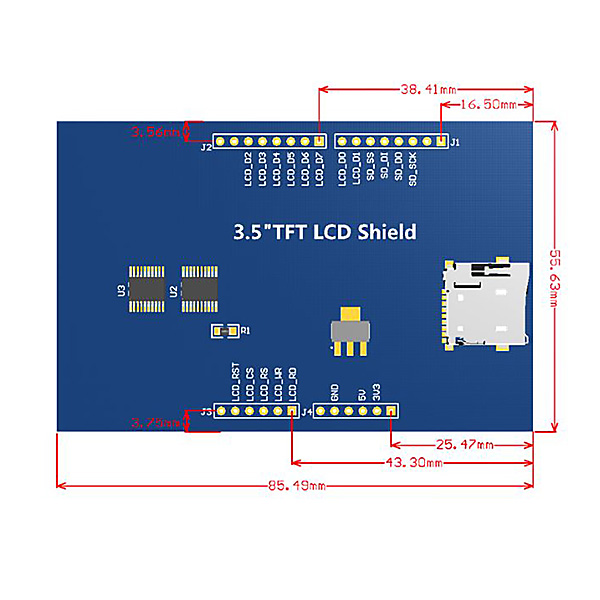

模組PCB尺寸 | 85.49*55.63(mm) |
工作溫度 | -20℃~70℃ |
儲存溫度 | -40℃~70℃ |
工作電壓 | 5V/3.3V |
功耗待定 | TBD |
重量 | 55g(不含觸控螢幕) |
文件下載 |
適用arduino uno mega2560 DUE
出貨清單 |
