溫度+濕度感測模組HIH6130 (I2C)

產品貨號：368030600253
區號：Mb37-24
品牌：
原廠貨號：SEN-11295

全店，滿千免運優惠(限郵寄和超商純取貨)

NT$980

{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}

{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}

一次最大商品購買數量限制為 99999

該數量不適用，請填入有效的數量。

若想購買，請聯絡我們。

送貨及付款方式

您需要的是一個結合了濕度和溫度讀數的感測器。 HIH6130 是一款數字輸出型相對濕度 (RH) 和溫度感測器，集成在同一封裝中。這允許對 RH 測量進行溫度補償，並提供第二個獨立的溫度感測器輸出。

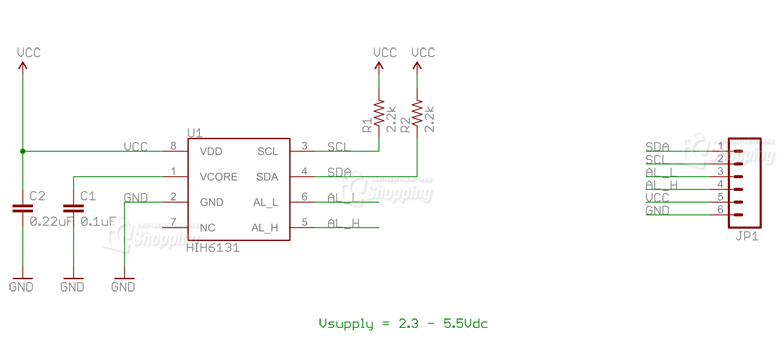

該分線板為該 SOIC 封裝上的每個引腳提供標準的 0.1" 間距接頭，使您可以更輕鬆地製作下一個濕度傳感應用的原型。使用“Wire.h 等庫”可通過 I2C 輕鬆實現與 HIH6130 的通訊 ”

商品特色:

工作電壓：2.3-5.5v
補償濕度範圍：10-90% RH
補償溫度範圍 5-50°C
真正的溫度補償數字 I2C 輸出
廣泛工作溫度範圍可以在許多應用中使用

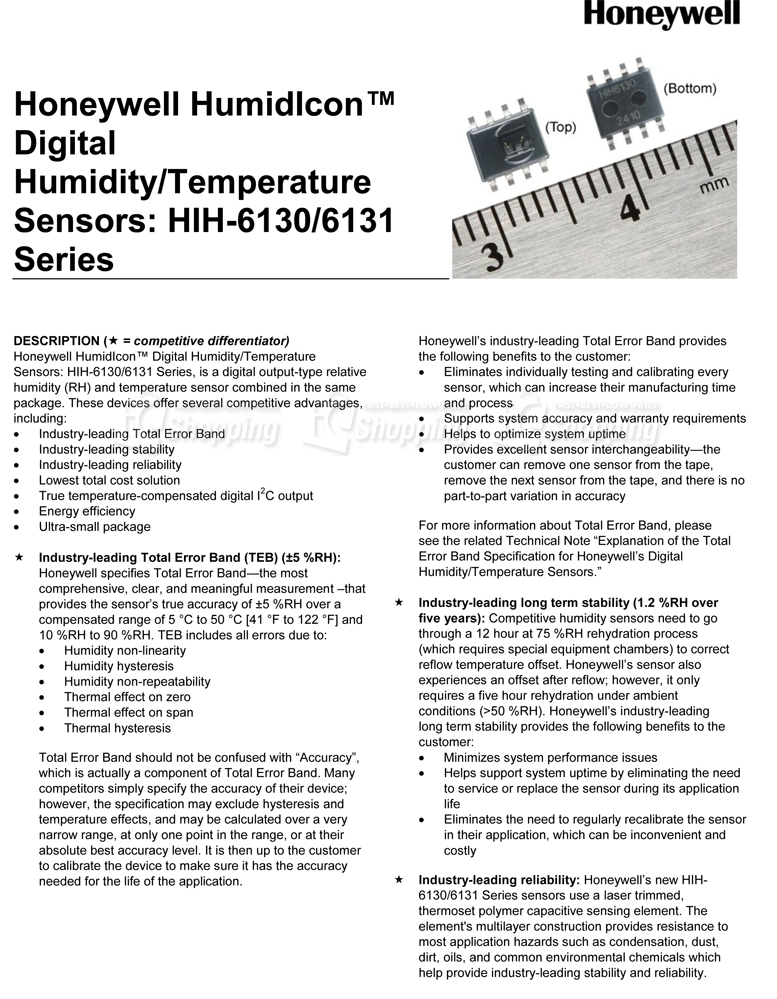

下載文件:

商品規格

如何查詢I2C位址

操作流程

STEP 1. 將欲查詢的模組連接至Arduino UNO（附圖為腳位參考，實際請比對商品標示接線）

STEP 2. 開啟Arduino IDE並新增檔案

STEP 3. 貼入教學下方的範例文件，並上傳到Arduino UNO，即會開始掃描I2C位址

STEP 4. 開啟序列埠監控視窗，即可取得I2C位址

I2C掃描範例程式

    / ---------------------------------------------------------------- /
  // Arduino I2C Scanner
  // Re-writed by Arbi Abdul Jabbaar
  // Using Arduino IDE 1.8.7
  // Using GY-87 module for the target
  // Tested on 10 September 2019
  // This sketch tests the standard 7-bit addresses
  // Devices with higher bit address might not be seen properly.
  / ---------------------------------------------------------------- /

  #include  //include Wire.h library

  void setup()
  {
   Wire.begin(); // Wire communication begin
   Serial.begin(9600); // The baudrate of Serial monitor is set in 9600
   while (!Serial); // Waiting for Serial Monitor
   Serial.println("\nI2C Scanner");
  }

  void loop()
  {
   byte error, address; //variable for error and I2C address
   int nDevices;

   Serial.println("Scanning...");

   nDevices = 0;
   for (address = 1; address < 127; address++ )
   {
   // The i2c_scanner uses the return value of
   // the Write.endTransmisstion to see if
   // a device did acknowledge to the address.
   Wire.beginTransmission(address);
   error = Wire.endTransmission();

   if (error == 0)
   {
   Serial.print("I2C device found at address 0x");
   if (address < 16)
   Serial.print("0");
   Serial.print(address, HEX);
   Serial.println(" !");
   nDevices++;
   }
   else if (error == 4)
   {
   Serial.print("Unknown error at address 0x");
   if (address < 16)
   Serial.print("0");
   Serial.println(address, HEX);
   }
   }
   if (nDevices == 0)
   Serial.println("No I2C devices found\n");
   else
   Serial.println("done\n");

   delay(5000); // wait 5 seconds for the next I2C scan
  }



出貨清單

溫度+濕度感測模組HIH6130 (I2C) x 1
