本商品為研發實驗用的模組，無法隨插即用，須經專業背景人士（如：工程師、研究生、師生）撰寫程式、燒錄、接線等二次加工後，才具備訊號傳輸功能。 並非直接插電後可直接使用之射頻模組，非屬電信管制射頻器材，購買前請詳閱商品說明。

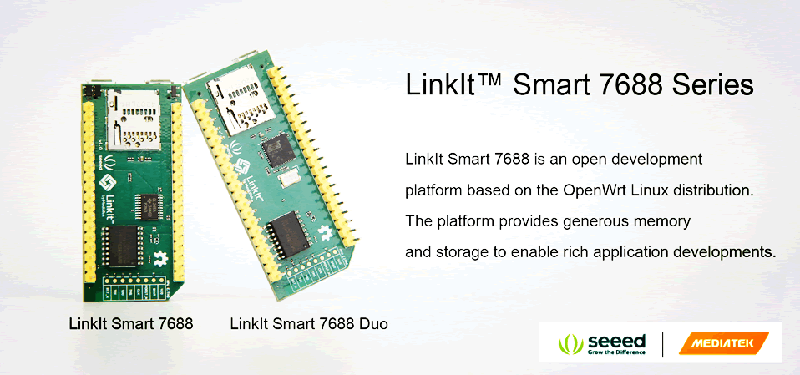

The Linklt Smart 7688 development platform offers two developments boards:
Linklt Smart 7688: MPU only. Powered by Media Tek MT7688.
Linklt Smart 7688 Duo: MPU and MCU. Powered by Media Tek MT7688 and ATmega 32U4.

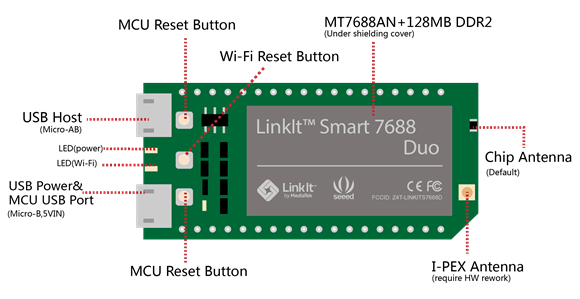

What is LinkIt Smart 7688 duo
LinkIt Smart 7688 Duo is an open development board compatible with Arduino Yún sketches, based on the OpenWrt Linux distribution, MT7688 and ATmega32u4. The board is designed especially to enable the prototyping of Rich Application IoT devices for smart house or office. Since it is well compatible with Arduino, this allows you to use different features from Arduino Yún and LinkIt Smart 7688 Duo, which will help you build rich applications based on various, robust and compiled Arduino Yún sketches. The board offers you the memory and packet storage to enable robust video processing. The platform also offers options to create device applications such as Python, Node.js and C programming language.
LinkIt Smart 7688 duo is a co-design product by Seeed Studio and MediaTek. It brings together the parties' knowledge in open hardware and industry leading reference designs for IoT devices to create this powerful development board.
LinkIt Smart 7688 duo is fully supported on the MediaTek Labs site: check out the
LinkIt section and
register here to download the SDK, participate in the Forums, and more.
Features - 580 MHz MIPS CPU
- Single input single output(1T1R) Wi-Fi 802.11 b/g/n (2.4G)
- Pin-out for GPIO, I2C, I2S, SPI, SPIS, UART, PWM and Ethernet Port
- 32MB flash and 128MB DDR2 RAM
- USB host
- Micro SD slot
- Support for Arduino (ATmega32U4)
Specifications
Category | Feature | Specification |
MPU | Chipset | MT7688AN |
Core | MIPS24KEc |
Clock speed | 580MHz |
Working voltage | 3.3V |
MCU | ATmega32U4 | |
Core | Atmel AVR |
Clock speed | 8MHz |
Working voltage | 3.3V |
PCB Size | Dimensions | 60.8 x 26 mm |
Memory | Flash | 32MB |
RAM | 128MB DDR2 |
Power Source | USB Power | 5V (USB micro-B) |
VCC | 3.3V (Pin Breakout) |
GPIO | Pin Count | 3 (MT7688AN)
24 (ATmega32U4) |
Voltage | 3.3v |
PWM | Pin Count | 8 (ATmega32U4) |
Voltage | 3.3v |
Max. Resolution | 16 bits (customizable) |
Maximum Frequency@Resolution | 31.25kHz@8-bit
Timer 0 (4 sets) Timer 1 & 3 (4 sets) |
187.5kHz@8-bit
46.875kHz@10-bit Timer 4 (6 sets) |
ADC | Pin Count | 12 (ATmega32U4) |
Voltage | 3.3v |
External Interrupts | Pin Count | 8 (ATmega32U4) |
SPI/SPIS | Set count | 1 (ATmega32U4) |
Pin numbers | S0, S1, S2, S3 |
Max. Speed | 4 MHz |
UART Lite | Set count | 1 (ATmega32U4) |
1 (MT7688AN) |
Pin numbers | P8, P9 (MT7688AN) |
D0, D1 (ATmega32U4) |
Max. Speed | 0.5 Mbps (MT7688AN) |
0.5 Mbps (ATmega32U4) |
USB Host | Set count | 1 (MT7688AN) |
Pin numbers | P6, P7 |
Connector type | Micro-AB |
Communication | Wi-Fi | 1T1R 802.11 b/g/n (2.4G) |
Ethernet | 1-port 10/100 FE PHY |
Pin numbers | P2, P3, P4, P5 |
User Storage | SD Card | Micro SD
SDXC |

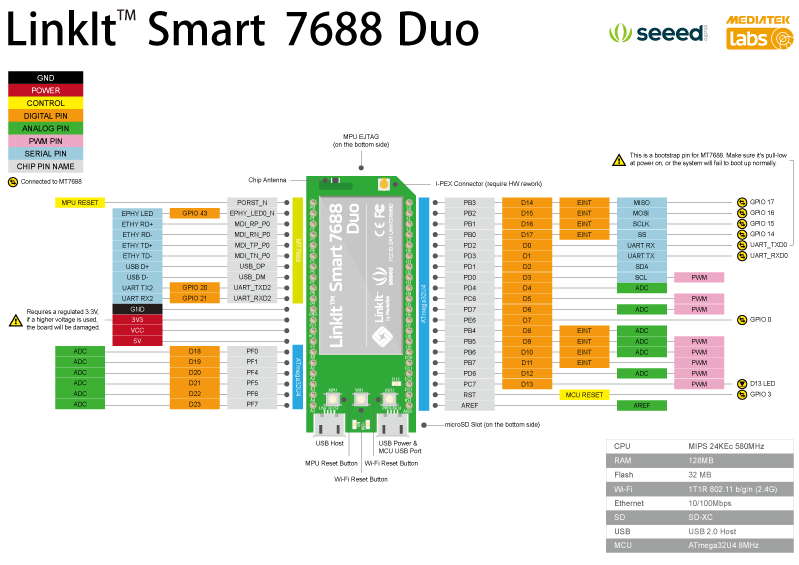

Schematic diagram
DEMO

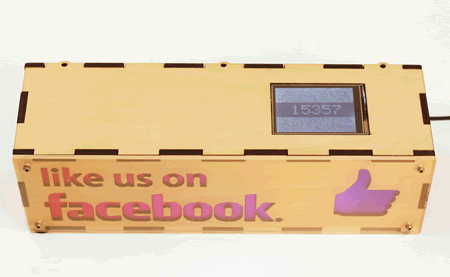

| Demo –Facebook Likes Reminder
It will remind you once you have a new Likes from your facebook page. The device will vibrate，the lights will twinkle, while the screen will show the real time facebook likes. |
Documents
Please visit our Wiki page for more info about this product. It will be highly appreciated if you can help improve the documents, add demo codes or tutorials. For technical support, please post your questions to our Forum.
- ※LinkIt Smart 7688 Duo x 1
