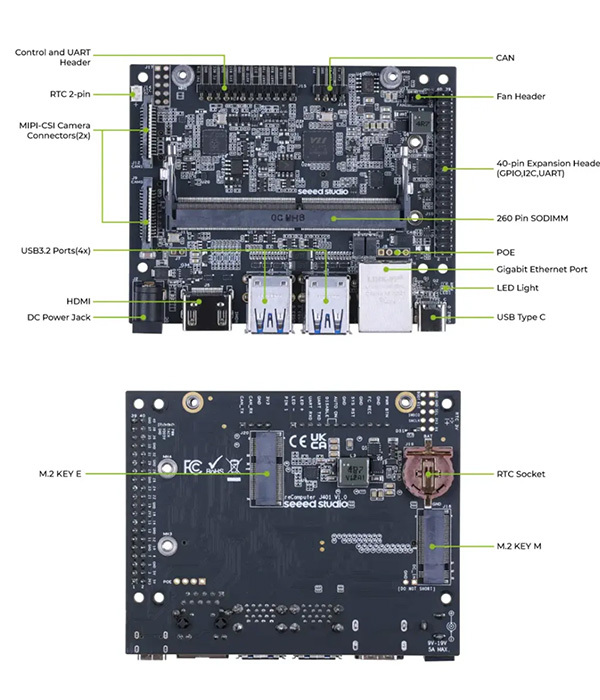

J401 載板是一款先進的開源擴充板,適用於 NVIDIA Jetson Orin Nano/Orin NX 模組。它從 SoM 中分出典型的 IO 接口,提供高速和低速連接。其尺寸、性能和易於開發的特性使 Jetson Orin 系統具有靈活性和可擴展性,可快速進入市場並持續更新。
產品貨號:368030800931
區號:
品牌:Seeed
原廠貨號:102110769
全店,滿千免運優惠(限郵寄和超商純取貨)
全店,本賣場無實體店面,無提供自取服務,敬請見諒。
商品存貨不足,未能加入購物車
您所填寫的商品數量超過庫存
{{'products.quick_cart.out_of_number_hint'| translate}}
{{'product.preorder_limit.hint'| translate}}
每筆訂單限購 {{ product.max_order_quantity }} 件
現庫存只剩下 {{ quantityOfStock }} 件
儲存 | 1x M.2 Key M(連接器支援 2280 NVMe SSD) |
乙太網路 | 1個RJ-45千兆乙太網路(10/100/1000M) |
M.2 KEY E | 1x M.2 Key E 用於 WiFi/藍牙模組 |
USB | 4x USB 3.2 Type-A(10Gbps),1x USB2.0 Type-C(裝置模式) |
Camera | 2x CSI (2-lane 15pin) |
顯示 | 1x HDMI 2.1 |
風扇 | 1x 4pin風扇連接器 (5V PWM) |
CAN | 1x CAN |
多功能連接埠 | 1 個 40pin擴充接口 1 個 12pin控制和 UART 接口 |
RTC | 1x RTC 2pin,支援 CR1220,但不包含在內 |
電力 | 9-19V DC |
尺寸 (W x D) | 100mm x 80mm |
安裝方式 | 桌面、壁掛 |
工作溫度 | -10℃~60℃ |
