產品貨號:368031200135
區號:Lf05-11
品牌:
原廠貨號:DFR0051
全店,滿千郵寄超商純取免運優惠
商品存貨不足,未能加入購物車
您所填寫的商品數量超過庫存
{{'products.quick_cart.out_of_number_hint'| translate}}
{{'product.preorder_limit.hint'| translate}}
每筆訂單限購 {{ product.max_order_quantity }} 件
現庫存只剩下 {{ quantityOfStock }} 件
商品簡介 |
基於電阻分壓原理的電壓檢測模組,配合Arduino感測器擴展板可以完成對電壓電量大小的檢測,可以監控互動媒體作品的電量或機器人供電的電量。電壓檢測模組能使輸入的電壓縮小5倍。由於Arduino類比輸入電壓最大為5V,故電壓檢測模組的輸入電壓不能大於5Vx5=25V。Arduino的類比解析度最小為0.0049V,所以電壓檢測模組輸入最小電壓為0.0049Vx5=0.0245V。被測電源引線到綠色接線柱上,正接VCC,負接GND。

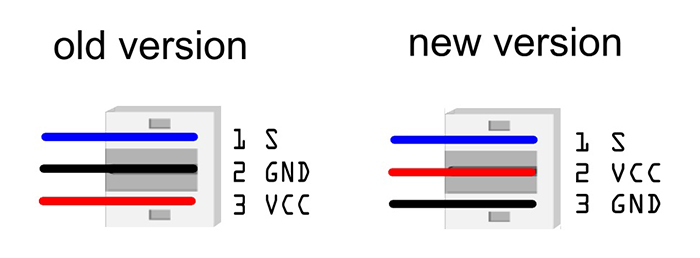

注意事項:新版模擬感測器的埠佈局具備以下改進。請參考我們博客中"如何更改資料線接頭佈局"的說明(http://www.dfrobot.com/community/trick-for-changing-sensor-cable-pin-mapping.html)。當在IO擴展板上使用該感測器時,你可能會需要調整接頭的佈局。
商品規格 |
工作電壓:5V
檢測電壓: DC最大+25V,最小+0.0245V
尺寸:20X30mm
重量:10g
電壓檢測模組 1個
模擬感測器線 1根
文件下載 |
產品資料庫
http://wiki.dfrobot.com.cn/index.php/(SKU:DFR0051)%E6%A8%A1%E6%8B%9F%E7%94%B5%E5%8E%8B%
E6%A3%80%E6%B5%8B%E6%A8%A1%E5%9D%97
原理圖
http://www.dfrobot.com.cn/images/upload/File/20140605181223r3yd38.pdf
出貨清單 |
