商品描述
需要測量水質和其他參數，但沒有任何低成本的pH計嗎？發現難以與Arduino一起使用？DFRobot模擬pH計，專為Arduino控制器設計，具有方便實用的“ 重力 ”連接器和一系列功能。將您的探針與Arduino即時連接，使pH值測量值達到±0.1pH（25℃）。對於大多數業餘愛好者而言，這種精確的測量範圍和低成本使其成為生物機器人和其他項目的理想工具！它有一個LED作為電源指示燈，BNC連接器和PH2.0傳感器接口。要使用它，只需將pH傳感器與BND連接器連接，然後將PH2.0接口插入任何Arduino控制器的模擬輸入端口。如果預先編程，您將輕鬆獲得pH值。帶有泡沫的緊湊型塑料盒，可提供更好的移動存儲空間。
為您的水箱建立自己的PH計gadjet或水監測站。這和我們的其他水傳感器設備可以製成最終的水控裝置。用於您的aquaponics或魚缸或其他需要測量的材料。
這是一種實驗室探頭，它不能長時間浸入液體中。您可以在這裡查看整個 模擬pH傳感器/儀表Pro套件Arduino 或備用工業探頭作為替代品
什麼是pH值？
pH代表氫的功率，它是體內氫離子濃度的量度。總pH值範圍為1至14，其中7為中性。小於7的pH被認為是酸性的，pH大於7的溶液是鹼性或鹼性的。
注意：不包括緩衝溶液。
注意：收到包裹後！您可能會在保護泡沫上發現一些白色顆粒，這是從瓶蓋中的KCl結晶。請不要擔心包裝盒中的結晶，這是正常的。實際上，由於對液體的運輸限制，我們已經將KCL3N溶液倒入蓋子中，因此殘留物中的包裝盒中的輕微結晶應該被洩漏。無論如何，一旦你收到探針，你應該把它存放在KCL3N解決方案中，你不能把它放在乾燥的環境中

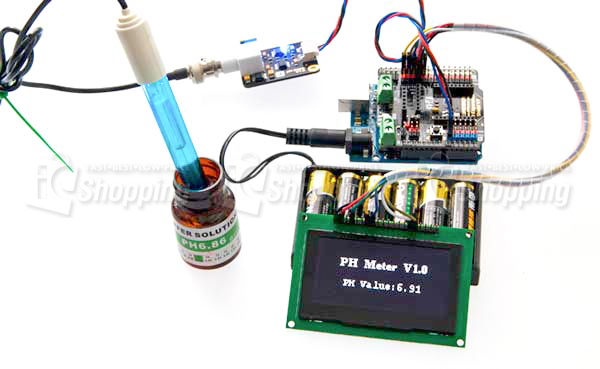

Need to measure water quality and other parameters but haven't got any low cost pH meter? Find it difficult to use with Arduino? DFRobot analog pH meter, specially designed for Arduino controllers and has convenient and practical "Gravity" connector and a bunch of features. Instant connection to your probe an your Arduino to get pH measurements at ± 0.1pH (25 ℃). For most hobbyist this great accuracy range and it's low cost makes this a great tool for biorobotics and other projects! It has an LED which works as the Power Indicator, a BNC connector and PH2.0 sensor interface. To use it, just connect the pH sensor with BND connector, and plug the PH2.0 interface into the analog input port of any Arduino controller. If pre-programmed, you will get the pH value easily. Comes in compact plastic box with foams for better mobile storage.
Build your own PH meter gadjet, or a water monitoring station for your water tanks. This and our other water sensor devices could make for the ultimate water control device. Use it for your aquaponics or fish tanks or other materials that need measurements.

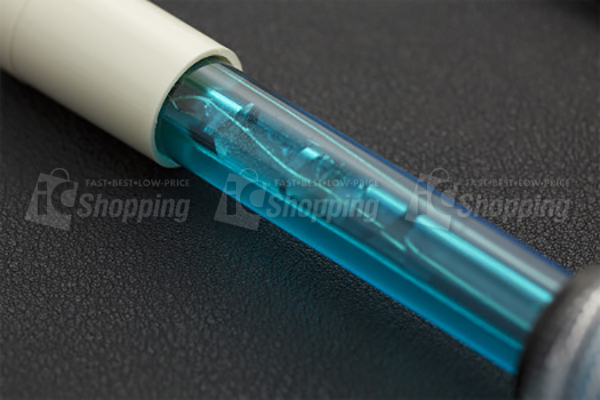

This is a laboratorial probe, it can't be immersed in the liquid for too long time. You can check here for the whole Analog pH Sensor / Meter Pro Kit For Arduino or a spare Industrial Probe as replacement
What is pH?
“pH stands for power of hydrogen, which is a measurement of the hydrogen ion concentration in the body. The total pH scale ranges from 1 to 14, with 7 considered to be neutral. A pH less than 7 is said to be acidic and solutions with a pH greater than 7 are basic or alkaline.”
Note: Buffer solutions are not included.
Note: After you received your package! You may found some white particles on the protection foam which is the KCl crystallization from the cap. Please don't worry about the crystallization in the packing box, that's normal. Actually, since the transportation restriction on liquid, we have poured out the KCL3N solution in the cap, the slight crystallization in the packing box should be leaked since the remnant. Anyway, once you received the probe, you should store it in KCL3N solution, you can not leave it in dry circumstance.
APPLICATIONS
- 水質檢測Water quality testing
- 水產養殖Aquaculture
SPECIFICATION
- 模塊功率：5.00V Module Power : 5.00V

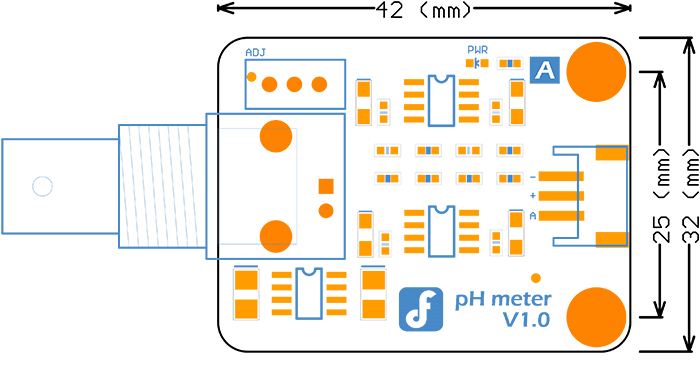

- 模塊尺寸：43 x 32mm（1.69x1.26“） Module Size : 43 x 32mm(1.69x1.26")
- 測量範圍：0 - 14PH Measuring Range :0 - 14PH
- 測量溫度：0 - 60℃ Measuring Temperature: 0 - 60 ℃
- 精度：±0.1pH（25℃）Accuracy : ± 0.1pH (25 ℃)
- 響應時間：≤1min Response Time : ≤ 1min

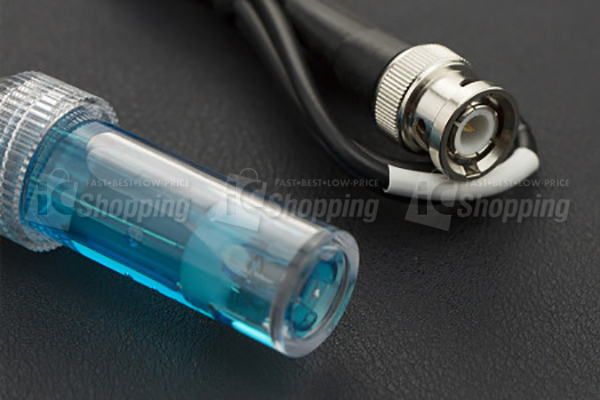

- 帶BNC連接器的pH傳感器 pH Sensor with BNC Connector
- pH2.0接口（3英尺貼片） pH2.0 Interface ( 3 foot patch )
- 增益調節電位器 Gain Adjustment Potentiometer
- 電源指示燈LED Power Indicator LED
Documents:
- pH探頭（BNC連接器） pH probe (BNC connector) x 1

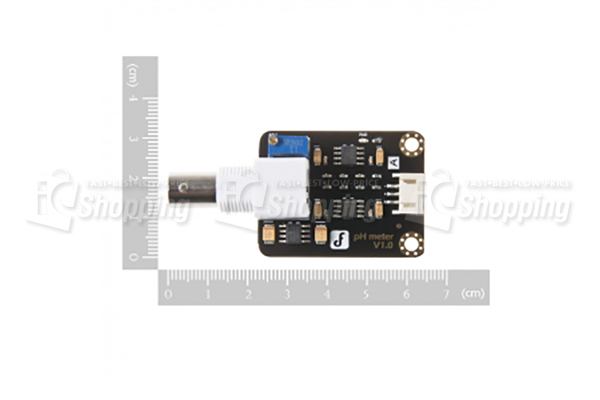

- pH傳感器電路板 pH sensor circuit board x 1
- 模擬電纜 Analog cable x 1
