產品貨號:368031700017
區號:
品牌:Waveshare
原廠貨號:18179
全店,滿千郵寄超商純取免運優惠
商品存貨不足,未能加入購物車
您所填寫的商品數量超過庫存
{{'products.quick_cart.out_of_number_hint'| translate}}
{{'product.preorder_limit.hint'| translate}}
每筆訂單限購 {{ product.max_order_quantity }} 件
現庫存只剩下 {{ quantityOfStock }} 件
商品簡介 |
內建SH1107驅動晶片,使用SPI、I2C接頭通訊
商品特色:
商品規格 |
工作電壓 | 3.3V |
解析度 | 64 x 128 pixels |
通訊接頭 | 4-wire SPI、I2C |
驅動晶片 | SH1107 |
顯示面板 | OLED |

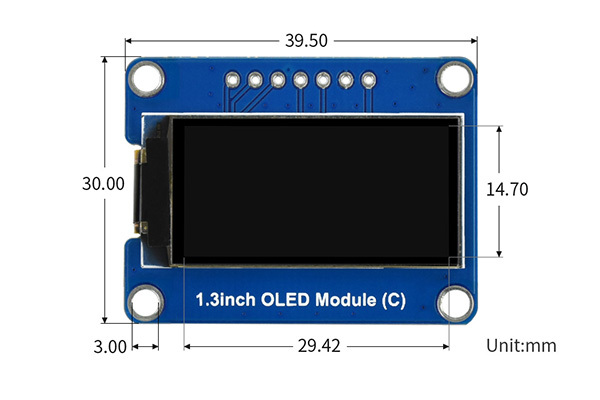

顯示尺寸 | 14.70 × 29.42mm |
像素大小 | 0.15 × 0.15mm |
產品尺寸 | 30.0 × 39.5mm |

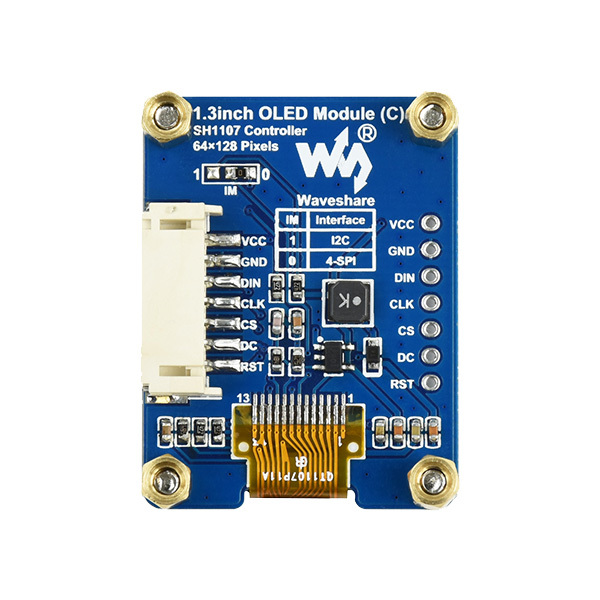

SPI接頭
可接入Raspberry Pi/Arduino/STM32等主控板
VCC | 電源正(3.3V 電源輸入) |
GND | 電源地 |
DIN | 資料輸入 |
CLK | 時鐘信號輸入 |
CS | 片選,低電壓有效 |
DC | 資料 / 命令 低電壓表示命令,高電壓表示資料 |
RST | 重啟,低電壓有效 |
硬體連接

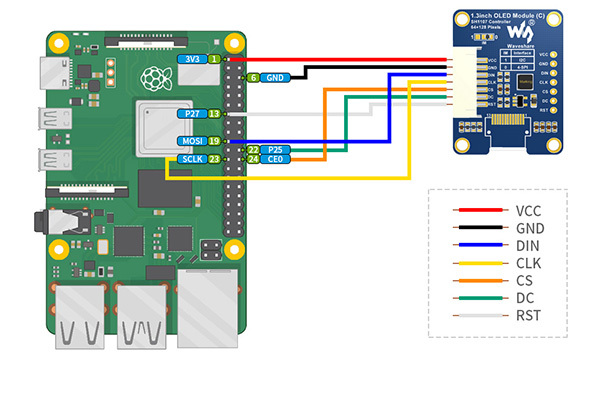

可接入Raspberry Pi

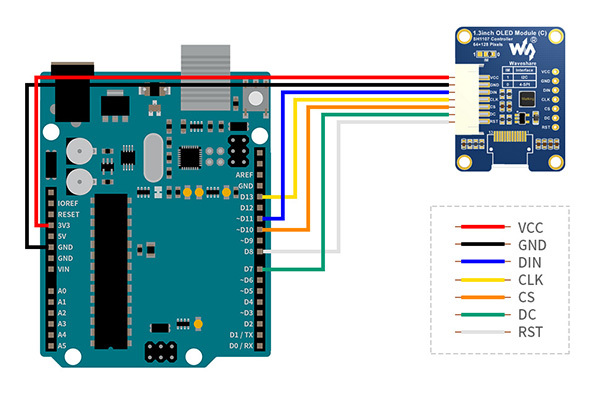

可接入Arduino

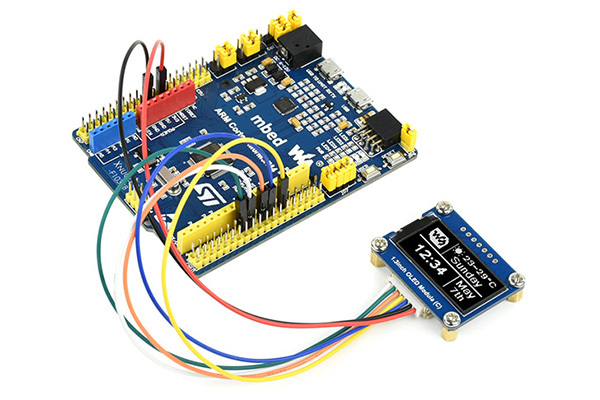

使用範例
文件下載 |
出貨清單 |
