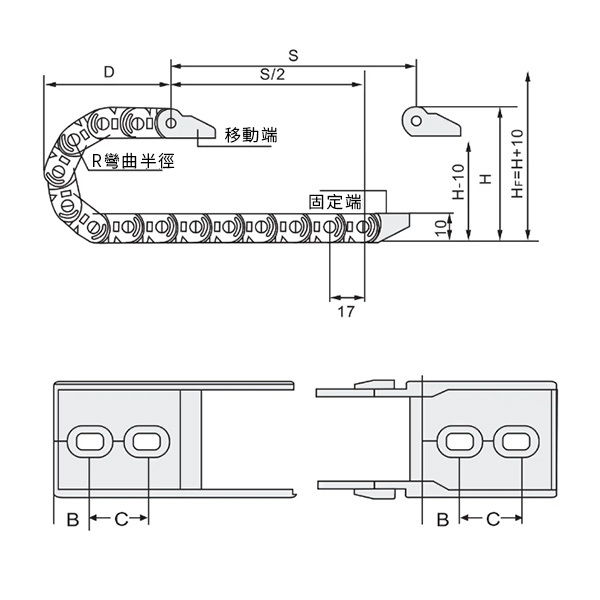

內孔7x7mm塑膠拖鏈
節距=17mm,不含接頭每米節數59,鏈長=S/2+K,S=行程距離,K=π.R+"安全量"
R | 15 | 28 |
H | 40 | 66 |
D | 37 | 50 |
K | 80 | 121 |
系列 | 內高 | 內寬 | 外高 | 外寬 | 彎曲半徑 | 打開方式 | 孔徑(mm) | 對應接頭孔距(mm) | 接頭訂購型號 |
微型系列 | 7 | 7 | 10 | 14 | 15,28 | 橋式不可打開 | 3x4.5 | B=5 C=8 | 7.7.B.12PZ |

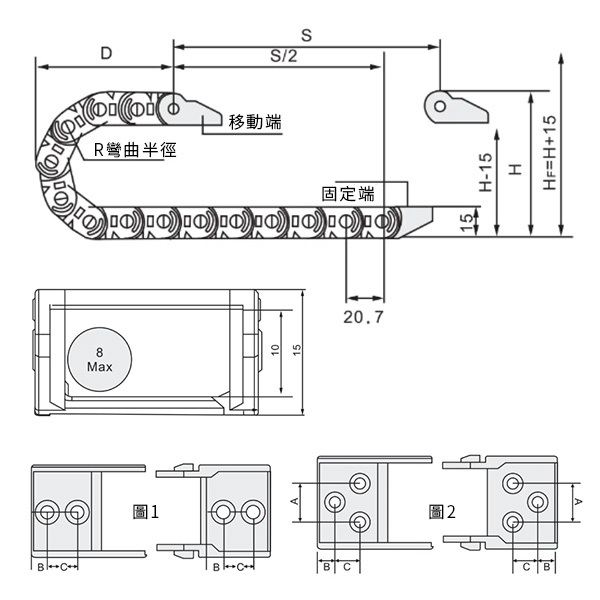

內孔10x10mm塑膠拖鏈
節距=20.7mm,不含接頭每米節數50,鏈長=S/2+K,S=行程距離,K=π.R+"安全量"
R | 18 | 28 | 38 |
H | 51 | 71 | 91 |
D | 47 | 57 | 67 |
K | 101 | 133 | 164 |
系列 | 內高 | 內寬 | 外高 | 外寬 | 彎曲半徑 | 打開方式 | 孔徑(mm) | 對應接頭孔距(mm) | 接頭訂購型號 |
微型系列 | 10 | 10 | 15 | 18 | 18,28,38 | 橋式不可打開 | 4x7L | B=8 C=9 | 10.10.B.12PZ(圖1) |
規格 | 產品貨號 | 區號 |
內孔7x7mm塑膠拖鏈 1米 | 368040400105 | Qb19-02 |
內孔10x10mm塑膠拖鏈 1米 | 368040400106 | Kb02-01-D06 |
