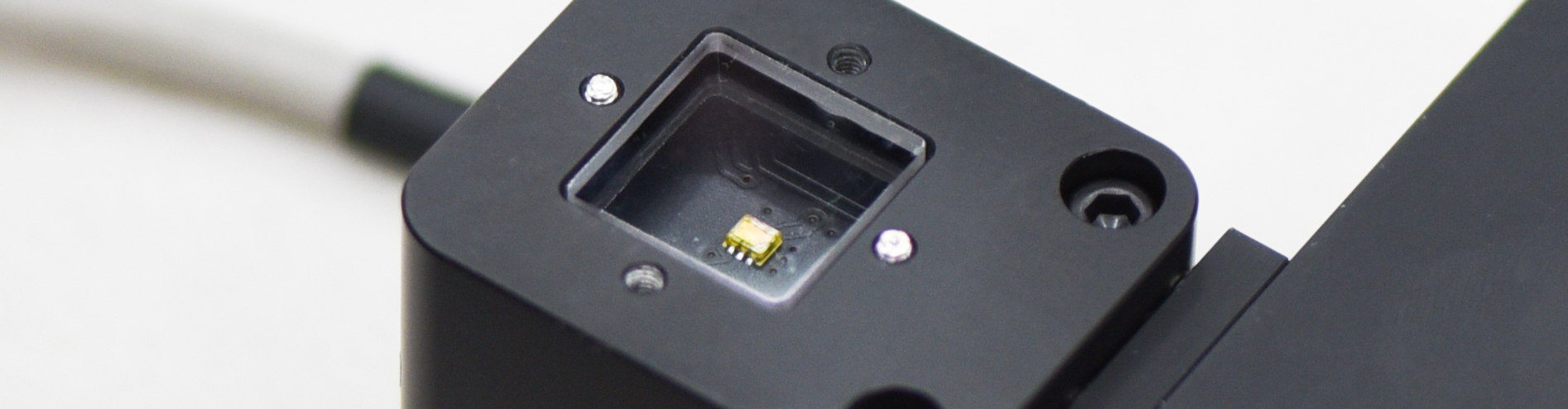

Plasma Detector 為一具高解析度之可見光源偵測器,可應用於 Plasma 及一般光源之偵測及強度分析。 完全隔離設計之工業標準電壓輸出,系統可支援常見之工業感測器之電壓標準規格,直接使用於任何的工業量測系統中。本身具備顯示器可及時監看量測數據及輸出電壓,並可獨立設置所有參數以適應不同環境量測之需求。
全店,滿千郵寄超商純取免運優惠
商品存貨不足,未能加入購物車
您所填寫的商品數量超過庫存
{{'products.quick_cart.out_of_number_hint'| translate}}
{{'product.preorder_limit.hint'| translate}}
每筆訂單限購 {{ product.max_order_quantity }} 件
現庫存只剩下 {{ quantityOfStock }} 件
Plasma Detector 為一具高解析度之可見光源偵測器(Light Sensor),可應用於 Plasma 及一般光源之偵測及強度分析。 完全隔離設計之工業標準電壓輸出,系統可支援常見之工業感測器之電壓標準規格(0~5V、0~2.5V、1~5V、0.5~2.5V),直接使用於任何的工業量測系統中。本身具備顯示器可及時監看量測數據及輸出電壓,並可獨立設置所有參數以適應不同環境量測之需求。
Power | System Power Input | Voltage: DC24V+5%,-40% Current: 1.0A | 14~25V |
Input Sensor | Mode: | Visible | 430nm~800nm |
IR+Vis | 430nm~1100nm | ||
IR Only | 800nm~1100nm | ||
Range (Visible) | Low: 0~180 Lux | display: nnn.nn | |
High: 0~3500 Lux | display: nnnn.n | ||
Output | Output Voltage Range | DC: 0~5V | 0.002~4.998V Typical |
Output Current | ±5mA | ||
Voltage Resolution | 76.3uV(0.0000763V) | 16-bit | |
Timing | Plasma Detecting Rate | 2Hz Typical. | |
Vout Refresh Rate | 2Hz Typical. | ||
UI-Key Detecting | 30Hz Typical. | U/D/L/R/OK, Rotary-L/R | |
LCD Refresh Rate | 2Hz Typical. | 20x4 Character Display | |
Functions | 1. Gain Control | Low/High Auto-Control Max.Gain | Range= 3500 Lux Range= 8 Lux |
2. Output Scale | 0-1000 Fixed | ||
3. Output VOLT Setting | 1mV/Step |
