Ameba RTL8735BDM

ID：368030501884
Storage location：Za01-01
Brand：RealTek
Item number：6235ZRRB

滿千免運優惠(限郵寄和超商純取貨) on order

本賣場無實體店面，無提供自取服務，敬請見諒。 on order

NT$399

{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}

{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}

The maximum quantity per submit is 99999

This quantity is invalid, please enter a valid quantity.

Sold Out

Please message the shop owner for order details.

Description

Shipping & Payment

Description

PRODUCT

The 6235ZRRB is a highly integrated, low-power 802.11 a/b/g/n wireless LAN (WLAN) and Bluetooth photography lens module. It combines ARM v8M MCU (500MHz and 2.23 DMIPS/MHz), WLAN MAC, WLAN baseband with 1T1R support, Bluetooth MAC, RF, audio codec, ISP and H264/H265 encoder in one chip. It provides useful high-speed connection headers such as USB 2.0 host, USB 2.0 device, SD host, and Ethernet headers.
It also provides a bunch of configurable GPIOs for different applications and control purposes. The AmebaPro II series of digital peripherals integrates internal memory to achieve full Wi-Fi protocol functionality. Embedded memory configurations also support a variety of application development.

Feature

802.11 a/b/g/n compatible 1x1, 2.4GHz/5GHz
802.11e QoS Enhancements (WMM)
Wi-Fi WEP, WPA, WPA2, WPA3, WPS. Open, shared key, and pairwise key authentication services
Supports low power Tx/Rx for short range applications
Support antenna diversity
Up to 4 UART connectors with baud rates up to 4MHz, all configurable as log UART

Wireless connector

Support UART connector

Bluetooth function

Bluetooth Low Energy (BLE) 5.1
Supports low-power secure connections

Specification

model	6235ZRRB
Function	Support Wi-Fi/Bluetooth function

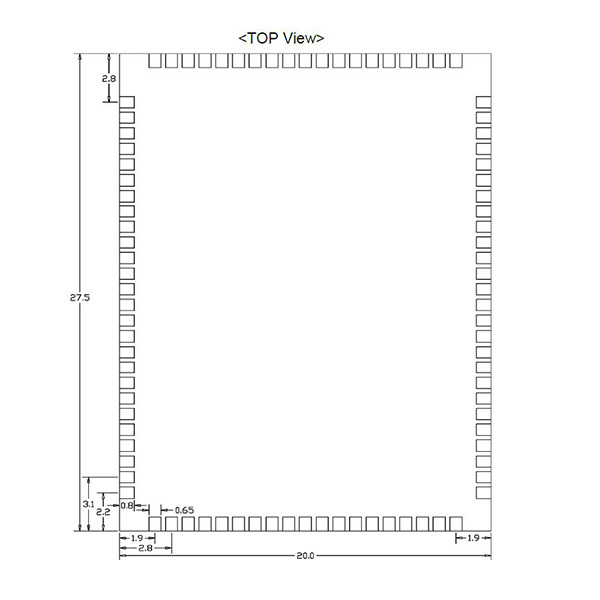

Size	27.5 x 20 mm
Wi-Fi connector	UART
Bluetooth connector	UART
Working Temperature	-20°C ~ 85°C
Storage Temperature	-40°C ~ 105°C
